76401TS

MachFlex™, 2 C #28 Str TC, SRPVC Ins, OS+TC Brd, PVC Jkt, CMG

...

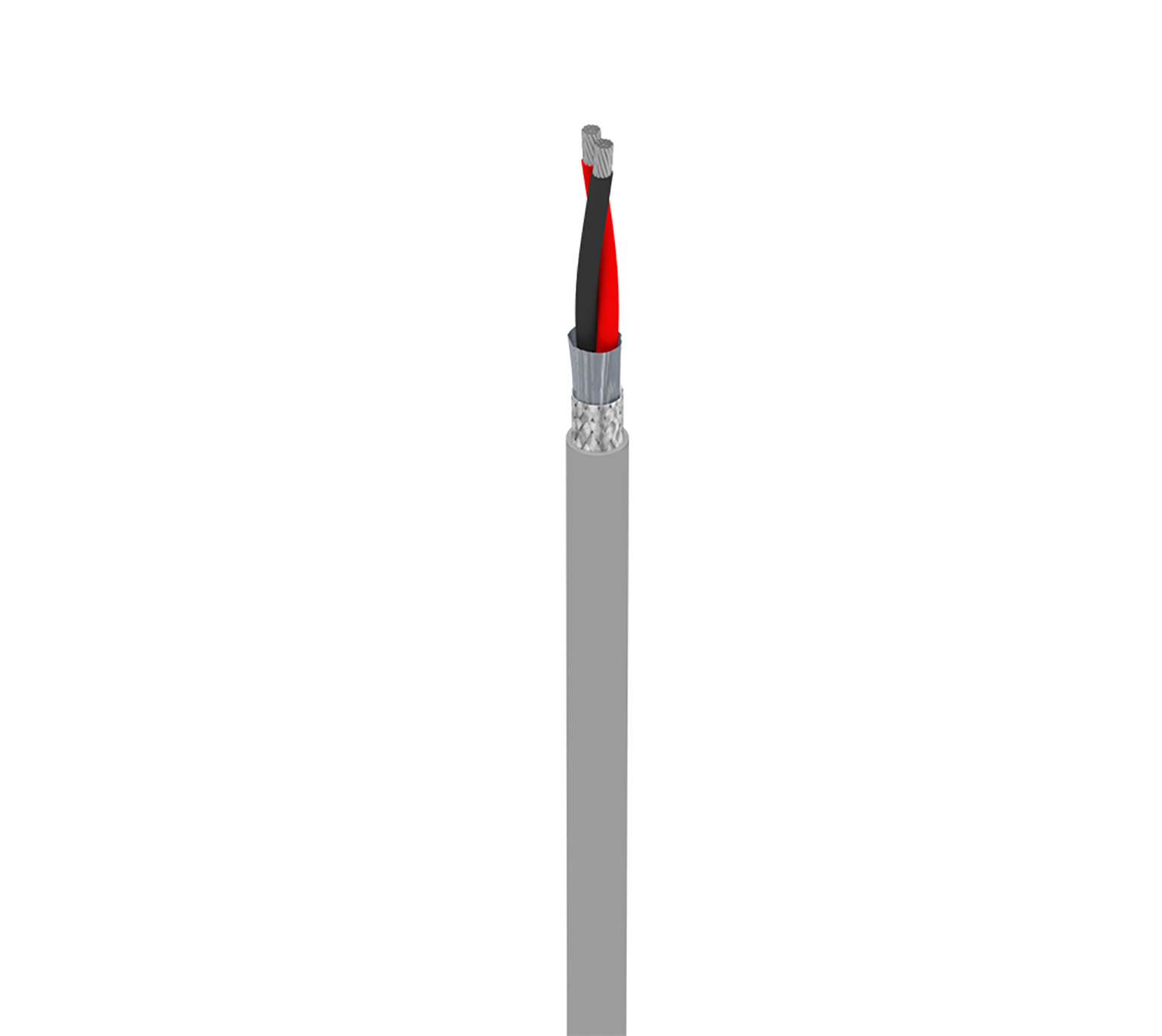

MachFlex™ for High Flex, 2 Conductor 28AWG (7x36) Tinned Copper, SRPVC Insulation, Overall Beldfoil®+Tinned Copper Braid(85%) Shield, PVC Outer Jacket, CMG
English
Request Quote
Share
Request Sample Get Product Alerts

Specifications
Report An Error
Product Overview

Suitable Applications

Robotics, Robot, Continuous Flex

Construction Details
Conductor
Element No. of Elements Size Stranding Material
Pair(s) 1 28 AWG 7x36 TC - Tinned Copper
Insulation
Element Material Nom. Thickness Nom. Insulation Diameter Color Code
Pair(s) PVC - Polyvinyl Chloride 0.010 in (0.25 mm) 0.035 in (0.89 mm) Black and Red
Outer Shield
Shield Type Material Coverage Drainwire Type
Tape Bi-Laminate (Alum+Poly) 100% 26 AWG (7x34) TC
Braid Tinned Copper (TC) 85%
Outer Jacket
Separator Material Nom. Thickness Nom. Diameter
Paper Tape PVC - Polyvinyl Chloride 0.040 in (1.0 mm) 0.186 in

Overall Cable Diameter (Nominal)

0.186 in

Electrical Characteristics
Electricals
Element Nom. Conductor DCR Nom. Capacitance Cond-to-Cond Nom. Capacitance Cond-to-Shield Nom. Characteristic Impedence Nom. Inductance Cond-Grnd Max. Current
Pair(s) 65 Ohm/1000ft 27 pF/ft (89 pF/m) 49 pF/ft (160 pF/m) 70 Ohm 0.22 µH/ft 1.3 Amps per Conductor at 25ºC
Voltage
UL Voltage Rating
300 V RMS
Mechanical Characteristics
Temperature
UL Temperature Operating
105°C -10°C To 105°C (Static), 5°C To 105°C (Dynamic)
Bend Radius
Stationary Min. Installation Min.
1.86 in (47.2 mm) 1.86 in

Max. Pull Tension

7.6 lbs (3.4 kg)

Bulk Cable Weight

22 lbs/1000ft

Standards and Compliance

Environmental Suitability

Indoor, Outdoor, Sunlight Resistance

Flammability / Reaction to Fire

UL1685 UL Loading

NEC / UL Compliance

Article 800, CM

AWM Compliance

AWM 2661, AWM 10002, AWM I/II A/B

CEC / C(UL) Compliance

CMG

European Directive Compliance

EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)

APAC Compliance

China RoHS II (GB/T 26572-2011)

History

Update and Revision

Revision Number: 0.146 Revision Date: 02-15-2024

Show All Specifications
Hide Specifications
Part Numbers
Item # Color Putup Type UPC
76401TS 008100 Gray Reel 612825411154
76401TS 0081000 Gray Reel 612825411161
