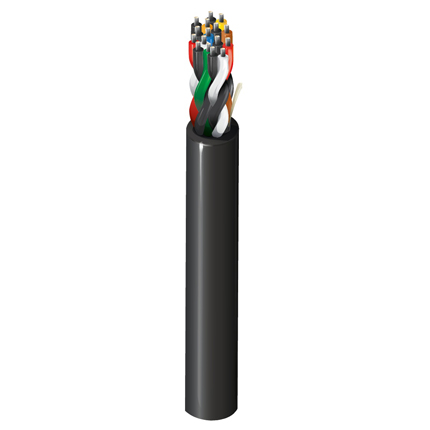

Product Number: DEDN168U
Indoor/Outdoor Digital Electricity™, 8 Pr #16 Str, TC, PVC, CL4, CMG, PVC Jkt, Wet Locations
Indoor/Outdoor Digital Electricity™ Copper Cable, 8 Twisted Pair 16 AWG (7x24) Stranded Tinned Copper, PVC insulation, Unshielded, PVC Jacket, CL4, CMG
-
Availability:
Global
-
Global inventory:
Available
Specifications
Product Overview
|
Suitable Applications |
Digital Electricity™, Fault Managed Power Systems (FMPS), remote powering, wet locations, in-conduit |
|---|
Physical Characteristics (Overall)
Conductor
| AWG | Stranding | Material | No. of Pairs |
|---|---|---|---|
| 16 | 7x24 | TC - Tinned Copper | 8 |
|
Conductor Count |
16 |
|---|---|
|
Total Number of Pairs |
8 |
Insulation
| Material | Nominal Wall Thickness |
|---|---|
| PVC - Polyvinyl Chloride | 0.017 in |
Color Chart
| Number | Color |
|---|---|
| 1 | Black & Red |
| 2 | Black & White |
| 3 | Black & Green |
| 4 | Black & Blue |
| 5 | Black & Yellow |
| 6 | Black & Brown |
| 7 | Black & Orange |
| 8 | Red & White |
Outer Jacket
| Material | Nominal Diameter | Nominal Wall Thickness |
|---|---|---|
| PVC - Polyvinyl Chloride | 0.589 in | 0.043 in |
Electrical Characteristics
Conductor DCR
| Nominal Conductor DCR |
|---|
| 4.55 Ohm/1000ft |
Capacitance
| Nom. Capacitance Conductor to Conductor |
|---|
| 24.5 pF/ft |
Current
| Max. Recommended Current [A] |
|---|
| 5.5 Amps per Conductor at 25ºC (35°C Temperature Rise) |
Voltage
| UL Voltage Rating |
|---|
| 450 V RMS |
Temperature Range
|
UL Temp Rating |
105°C |
|---|---|
|
Operating Temperature Range |
-30°C To +105°C |
Mechanical Characteristics
|
Bulk Cable Weight |
229 lbs/1000ft |
|---|---|
|
Max. Pull Tension |
570 lbs |
|
Min. Bend Radius/Minor Axis |
5.81 in |
Standards
|
NEC Articles |
Article 725, Article 800 |
|---|---|
|
NEC/(UL) Compliance |
CL4, CL3, CMG |
|
CEC/C(UL) Compliance |
CMG |
|
UL AWM Style Compliance |
AWM 2464 |
Applicable Environmental and Other Programs
|
EU Directive 2000/53/EC (ELV) |
Yes |
|---|---|
|
EU Directive 2003/11/EC (BFR) |
Yes |
|
EU Directive 2011/65/EU (RoHS 2) |
Yes |
|
EU Directive 2012/19/EU (WEEE) |
Yes |
|
EU Directive 2015/863/EU (RoHS 2 amendment) |
Yes |
|
EU Directive Compliance |
EU Directive 2003/11/EC (BFR) |
|
EU CE Mark |
Yes |
|
EU REACH SVHC Compliance (yyyy-mm-dd) |
2019-05-13 |
Suitability
|
Suitability - Indoor |
Yes |
|---|---|
|
Suitability - Outdoor |
Yes |
|
Suitability - Sunlight Resistance |
Yes |
Flammability, LS0H, Toxicity Testing
|
UL Flammability |
UL 1685 FT4 Loading |
|---|
History
|
Update and Revision |
Revision Number: 0.131 Revision Date: 12-22-2023 |
|---|
Information
|
Update and Revision |
Revision Number: 0.131 Revision Date: 12-22-2023 |
|---|
Part Numbers
| Item # | Color | Length |
|---|---|---|
| DEDN168U | Black | 2,000 ft |
