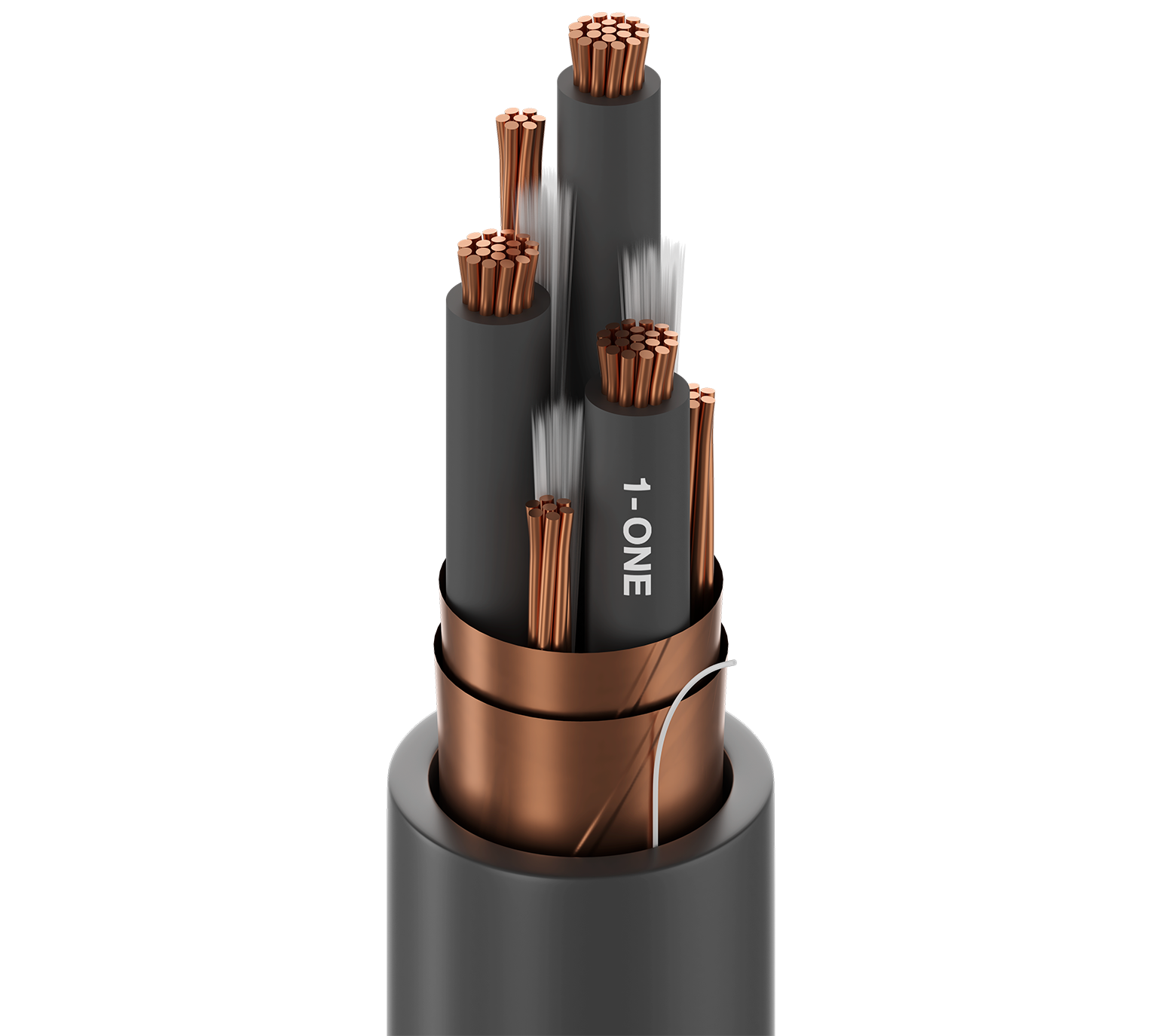

VFD, 3C #4/0 Str BC XLPE Ins + #3 Symm. Seg. Gnd (3 of #8) Str BC, CTS, Blk PVC Jkt, 600/1000V TC-ER 90C Dry/Wet 1000V CSA AWM I/II A/B
|
Suitable Applications |
Variable Frequency Drives (VFD); AC Motor and Drive Systems;Class 1 Division 2 Hazardous Locations |
|---|
| Element | No. of Elements | Size | Stranding | Material | Notes |
|---|---|---|---|---|---|
| Conductor(s) | 3 | 4/0 AWG | 19x10 | BC - Bare Copper | ASTM B3 Copper B8 Class B Stranding |
| Ground Wire | 3 | 8 AWG | 7x16 | BC - Bare Copper | Segmented Ground (3AWG Total of 3) |
| Element | Material | Nom. Thickness | Nom. Insulation Diameter | Color Code |
|---|---|---|---|---|
| Conductor(s) | XLPE - Cross-Linked Polyethylene (Thermoset) | 0.059 in (1.5 mm) | 0.630 in (16.0 mm) | ICEA Chart M4 |
| Ground Wire | No Insulation |
| Shield Type | Material | Coverage |
|---|---|---|
| Helical Tape | Bare Copper (BC) | 100% |
| Helical Tape | Bare Copper (BC) | 100% |
| Material | Nom. Thickness | Nom. Diameter | Ripcord |
|---|---|---|---|
| PVC - Polyvinyl Chloride | 0.083 in (2.1 mm) | 1.536 in (39.01 mm) | Yes |
|
Overall Cable Diameter (Nominal) |
1.536 in (39.01 mm) |
|---|
| Element | Nom. Conductor DCR | Nom. Capacitance Cond-to-Cond | Nom. Capacitance Cond-to-Other (Conds + Shield) | Nom. Characteristic Impedence | Nom. Velocity of Prop. | Max. Current |
|---|---|---|---|---|---|---|
| Conductor(s) | 0.052 Ohm/1000ft | 33 pF/ft (110 pF/m) | 60 pF/ft (200 pF/m) | 56 Ohm | 55% | 260 Amps per Conductor at 30ºC (per NEC) |
| 0.021 Ohm/1000ft (0.069 Ohm/km) |
| UL Voltage Rating | Voltage Rating |
|---|---|
| 1000 V (TC-ER) | 1000 V (CSA AWM I/II A/B) |
| UL Temperature | Operating |
|---|---|
| 90°C Dry, 90°C Wet | -40°C To +90°C |
| Stationary Min. | Installation Min. |
|---|---|
| 18.4 in (467 mm) | 18.4 in (467 mm) |
|
Max. Pull Tension |
8250 lbs (3740 kg) |
|---|---|
|
Bulk Cable Weight |
2576 lbs/1000ft |
|
Environmental Suitability |
Indoor, Outdoor, Sunlight Resistance, Burial |
|---|---|
|
Sustainability |
CA Prop 65 |
|
Flammability / Reaction to Fire |
UL 1685 UL Loading, IEEE 1202 FT4, FT4 |
|
NEC / UL Compliance |
Article 336, TC-ER, XHHW-2 |
|
AWM Compliance |
AWM I/II A/B |
|
ICEA Compliance |
S-95-658 |
|
European Directive Compliance |
EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE) |
|
APAC Compliance |
China RoHS II (GB/T 26572-2011) |
|
Other Standard Compliance(s) |
P-07-KA070003-MSHA |
|
Update and Revision |
Revision Number: 0.644 Revision Date: 06-19-2024 |
|---|
| Item # | Color | Putup Type | Length | UPC |
|---|---|---|---|---|
| 29532C 0101500 | Black | Reel | 1,500 m | 612825138273 |
