CATV Video, RG59, #20 BCCS, Foil + 95% Braid, CMP

...

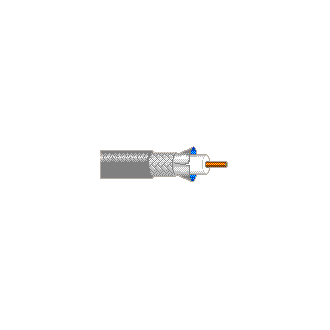

Series 59, 20 AWG solid .032" bare copper-covered steel conductor, plenum, foam FEP insulation, Duofoil® (100% coverage); TC braid shield (95% coverage), Flamarrest® jacket.
English
Request Quote
Share
Get Product Alerts

Specifications
Report An Error
Product Overview

Suitable Applications

CATV, Broadband

Physical Characteristics (Overall)
Conductor
AWG Stranding Material Nominal Diameter No. of Coax
20 Solid BCCS - Bare Copper Covered Steel 0.032 in 1

Conductor Count

1

Insulation
Material Material Trade Name Nominal Diameter
FEP - Fluorinated Ethylene Propylene (Foam) Teflon® 0.14 in
Outer Shield
Type Layer Material Material Trade Name Coverage [%]
Tape 1 Bi-Laminate (Alum+Poly) Duofoil® 100%
Braid 2 Tinned Copper (TC) 95%
Outer Jacket
Material Material Trade Name Nominal Diameter
PVC - Polyvinyl Chloride Flamarrest® 0.202 in
Electrical Characteristics
Conductor DCR
Nominal Conductor DCR Nominal Outer Shield DCR
26 Ohm/1000ft 2.6 Ohm/1000ft
Capacitance
Nom. Capacitance Conductor to Shield
16.5 pF/ft
Inductance
Nominal Inductance
0.09 µH/ft
Impedance
Nominal Characteristic Impedance
75 Ohm
Return Loss
Frequency [MHz] Min. Structural Return Loss (SRL)
10 - 400 MHz 20 dB
High Frequency (Nominal/Typical)
Frequency [MHz] Nom. Insertion Loss
10 MHz 0.8 dB/100ft
50 MHz 1.8 dB/100ft
100 MHz 2.6 dB/100ft
200 MHz 3.7 dB/100ft
400 MHz 5.4 dB/100ft
700 MHz 7.3 dB/100ft
900 MHz 8.4 dB/100ft
1000 MHz 8.9 dB/100ft
Delay
Nominal Delay Nominal Velocity of Propagation (VP) [%]
1.24 ns/ft 82%
High Frequency
Max. Insertion Loss (Attenuation)
0.92 dB/100ft
2.1 dB/100ft
2.9 dB/100ft
4.2 dB/100ft
5.9 dB/100ft
7.9 dB/100ft
9 dB/100ft
9.4 dB/100ft
Voltage
UL Voltage Rating
300 V RMS

Electrical Characteristics Notes

Max Attenuation 10 MHz and above = 0.2856*Freq(MHz)^0.5065

Temperature Range

Non-UL Temp Rating

75°C

Operating Temperature Range

0°C To +75°C

Mechanical Characteristics

Bulk Cable Weight

32 lbs/1000ft

Max. Pull Tension

100 lbs

Min. Bend Radius/Minor Axis

2 in
Standards

NEC/(UL) Compliance

CATVP, CMP

CEC/C(UL) Compliance

CMP, CXC

RG Type

59

Series Type

59

Applicable Environmental and Other Programs

Environmental Space

Indoor - Plenum

EU Directive 2000/53/EC (ELV)

Yes

EU Directive 2003/96/EC (BFR)

Yes

EU Directive 2011/65/EU (RoHS 2)

Yes

EU Directive 2012/19/EU (WEEE)

Yes

EU Directive Compliance

EU Directive 2003/11/EC (BFR)

EU CE Mark

No

MII Order #39 (China RoHS)

Yes

Suitability

Suitability - Aerial

No

Suitability - Burial

No

Suitability - Hazardous Locations

No

Suitability - Indoor

Yes

Suitability - Outdoor

No

Suitability - Sunlight Resistance

No

Flammability, LS0H, Toxicity Testing

UL Flammability

NFPA 262

CSA Flammability

FT4, FT6

UL voltage rating

300 V RMS

Plenum/Non-Plenum

Plenum (Y/N)

Yes

Related Part Numbers

Footnote

C - CRATE REEL PUT-UP.
Product Notes

Notes

Teflon« is a registered trademark of E. I. duPont de Nemours and Co. used under license by Belden, Inc.

History

Update and Revision

Revision Number: 0.382 Revision Date: 04-29-2024

Show All Specifications
Hide Specifications
Part Numbers
Item # Color Put-Up Type Length UPC
82108 8771000 Natural Reel 1,000 ft 612825196099
82108 877U1000 Natural UnReel 1,000 ft 612825358022
