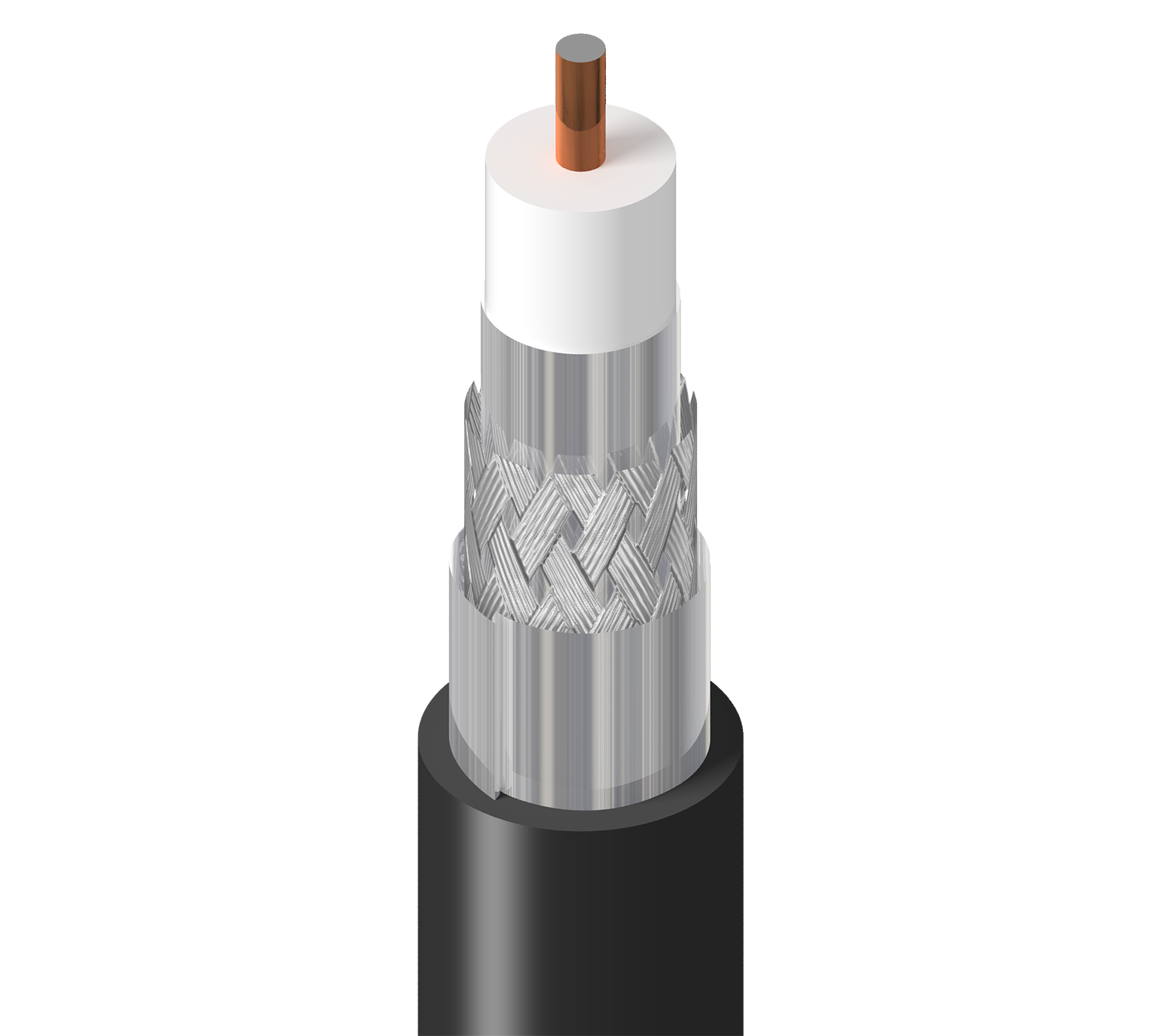

Product Number: 9058
CATV Video, RG6, 18 AWG BCCS, Tri Shield, CM PVC Jacket
CATV, Series 6, 18 AWG solid .040" bare copper-covered steel conductor(s), gas-injected foam polyethylene insulation, Duobond Plus®; aluminum braid shield (75% coverage), CM PVC jacket.
-
Availability:
Global
-
Global inventory:
Available
Specifications
Physical Characteristics (Overall)
Conductor
| AWG | Stranding | Material | Nominal Diameter | No. of Coax |
|---|---|---|---|---|
| 18 | Solid | BCCS - Bare Copper Covered Steel | 0.04 in | 1 |
|
Conductor Count |
1 |
|---|
Insulation
| Material | Nominal Diameter |
|---|---|
| PE - Polyethylene (Foam) | 0.18 in |
|
Table Notes |
Gas Injected |
|---|
Outer Shield
| Type | Layer | Material | Material Trade Name | Coverage [%] |
|---|---|---|---|---|
| Tape | 1 | Tri-Laminate (Alum+Poly+Alum) | Duofoil® | 100% |
| Braid | 2 | Aluminum | 75% | |
| Tape | 3 | Bi-Laminate (Alum+Poly) | 100% |
|
Table Notes |
Tape has shorting fold and is bonded to jacket |
|---|
Outer Jacket
| Material | Nominal Diameter |
|---|---|
| PVC - Polyvinyl Chloride | 0.275 in |
Electrical Characteristics
Conductor DCR
| Nominal Conductor DCR | Nominal Outer Shield DCR | Outer Conductor DCR |
|---|---|---|
| 28 Ohm/1000ft | 5.6 Ohm/1000ft | 5.6 Ohm/1000ft |
Capacitance
| Nom. Capacitance Conductor to Shield |
|---|
| 16.2 pF/ft |
Inductance
| Nominal Inductance |
|---|
| 0.097 µH/ft |
Impedance
| Nominal Characteristic Impedance |
|---|
| 75 Ohm |
Return Loss
| Frequency [MHz] | Min. Structural Return Loss (SRL) |
|---|---|
| 5-1000 MHz | 20 dB |
Delay
| Nominal Delay | Nominal Velocity of Propagation (VP) [%] |
|---|---|
| 1.2 ns/ft | 83% |
High Frequency
| Frequency [MHz] | Max. Insertion Loss (Attenuation) |
|---|---|
| 5 MHz | 0.58 dB/100ft |
| 55 MHz | 1.60 dB/100ft |
| 211 MHz | 3.05 dB/100ft |
| 270 MHz | 3.37 dB/100ft |
| 300 MHz | 3.55 dB/100ft |
| 350 MHz | 3.85 dB/100ft |
| 400 MHz | 4.15 dB/100ft |
| 450 MHz | 4.40 dB/100ft |
| 550 MHz | 4.90 dB/100ft |
| 750 MHz | 5.65 dB/100ft |
| 870 MHz | 6.11 dB/100ft |
| 1000 MHz | 6.55 dB/100ft |
Voltage
| UL Voltage Rating |
|---|
| 350 V RMS |
Temperature Range
|
Non-UL Temp Rating |
80°C |
|---|---|
|
Operating Temperature Range |
-40°C To +80°C |
Mechanical Characteristics
|
Bulk Cable Weight |
28 lbs/1000ft |
|---|---|
|
Max. Pull Tension |
138 lbs |
|
Min. Bend Radius/Minor Axis |
2.75 in |
Standards
|
NEC/(UL) Compliance |
CATV, CM |
|---|---|
|
CEC/C(UL) Compliance |
CM |
|
RG Type |
6 |
|
Series Type |
6 |
Applicable Environmental and Other Programs
|
Environmental Space |
Indoor (Not Riser or Plenum) |
|---|---|
|
EU Directive 2000/53/EC (ELV) |
Yes |
|
EU Directive 2003/96/EC (BFR) |
Yes |
|
EU Directive 2011/65/EU (RoHS 2) |
Yes |
|
EU Directive 2012/19/EU (WEEE) |
Yes |
|
EU Directive 2015/863/EU (RoHS 2 amendment) |
Yes |
|
EU Directive Compliance |
EU Directive 2003/11/EC (BFR) |
|
EU CE Mark |
Yes |
|
MII Order #39 (China RoHS) |
Yes |
Suitability
|
Suitability - Indoor |
Yes |
|---|
Flammability, LS0H, Toxicity Testing
|
UL Flammability |
UL1685 UL Loading |
|---|---|
|
UL voltage rating |
350 V RMS |
Plenum/Non-Plenum
|
Plenum (Y/N) |
No |
|---|
History
|
Update and Revision |
Revision Number: 0.376 Revision Date: 02-03-2025 |
|---|
Information
|
Update and Revision |
Revision Number: 0.376 Revision Date: 02-03-2025 |
|---|
Part Numbers
| Item # | Color | Put-Up Type | Length | UPC |
|---|---|---|---|---|
| 9058 0101000 | Black | Reel | 1,000 ft | 612825224075 |
| 9058 010U1000 | Black | UnReel | 1,000 ft | 612825396192 |
| 9058 009U1000 | White | UnReel | 1,000 ft | 612825224082 |
