FS11V-25

ProSNS RG-11 Universal "F" Coax Compression Connector

...

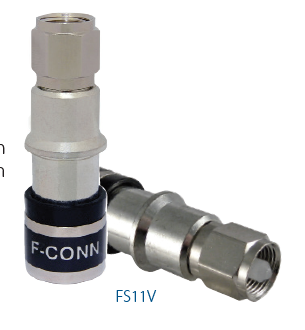

ProSNS RG11 Universal "F" male connector, non-blind entry with polymer compression sleeve for easy insertion & lowest possible tool compression force. This will fit most standard or quad-shield RG11 cables. 25 per Pack
English
Request Quote
Share
Get Product Alerts

Specifications
Report An Error
Product Overview

Suitable Applications

CCTV, Security Cameras, Video

Physical Characteristics (Overall)

Packaging

25 Pack

Number of Pieces

1

Connectors
Materials
Material
Nickel/Tin Plated Brass
Tin Plated Brass
Ethylene Propylene
Nickel/Tin Plated Brass
Gold Plated
Electrical Characteristics
Impedance
Nominal Characteristic Impedance
75 Ohm
Return Loss
Frequency [MHz]
-30 dB up to 1 GHz typical

Electrical Characteristics Notes

Salt Fog: Passes 1,000 hours ANSI/SCTE 143 2007, Moisture Migration: Passes ANSI/SCTE 60 2010, RFI Shielding: -85 dB typical (60% bonded foil), Insertion Loss: -0.2 dB up to 1 GHz typical

Temperature Range

Operating Temperature Range

-40 ºF (-40 ºC) to 140 ºF (60 ºC)

Mechanical Characteristics

Footprint/Type

Coax

Connector Interface Type

F

Gender

Male - plug

Connector Series Name

ProSNS

Color Band

Black

Locking

No

Tool Compatibility

CPLCCT-SS59/11 (compression), PS11 (strip)

Termination Type

Compression

Cable Center Conductor Diameter Limits

.0634 - .0647 inch

Cable Dielectric Diameter Limits

.280 - .294 inch

Cable Outer Jacket Diameter Limits

.390 - .417 inch

Standards

RG Type

11

Series Type

11

Applicable Environmental and Other Programs

EU CE Mark

Yes

Suitability

Suitability - Indoor

Yes

Suitability - Outdoor

Yes

Related Part Numbers

Patent

This product has one or more applicable patents. More information on patents can be found at https://www.belden.com/patents.

History

Update and Revision

Revision Number: 0.50 Revision Date: 03-04-2023

Show All Specifications
Hide Specifications
Part Numbers
Item # Color UPC
FS11V-25 No Color 845671000740
