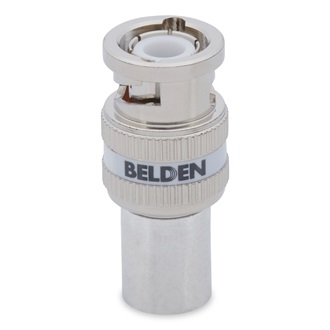

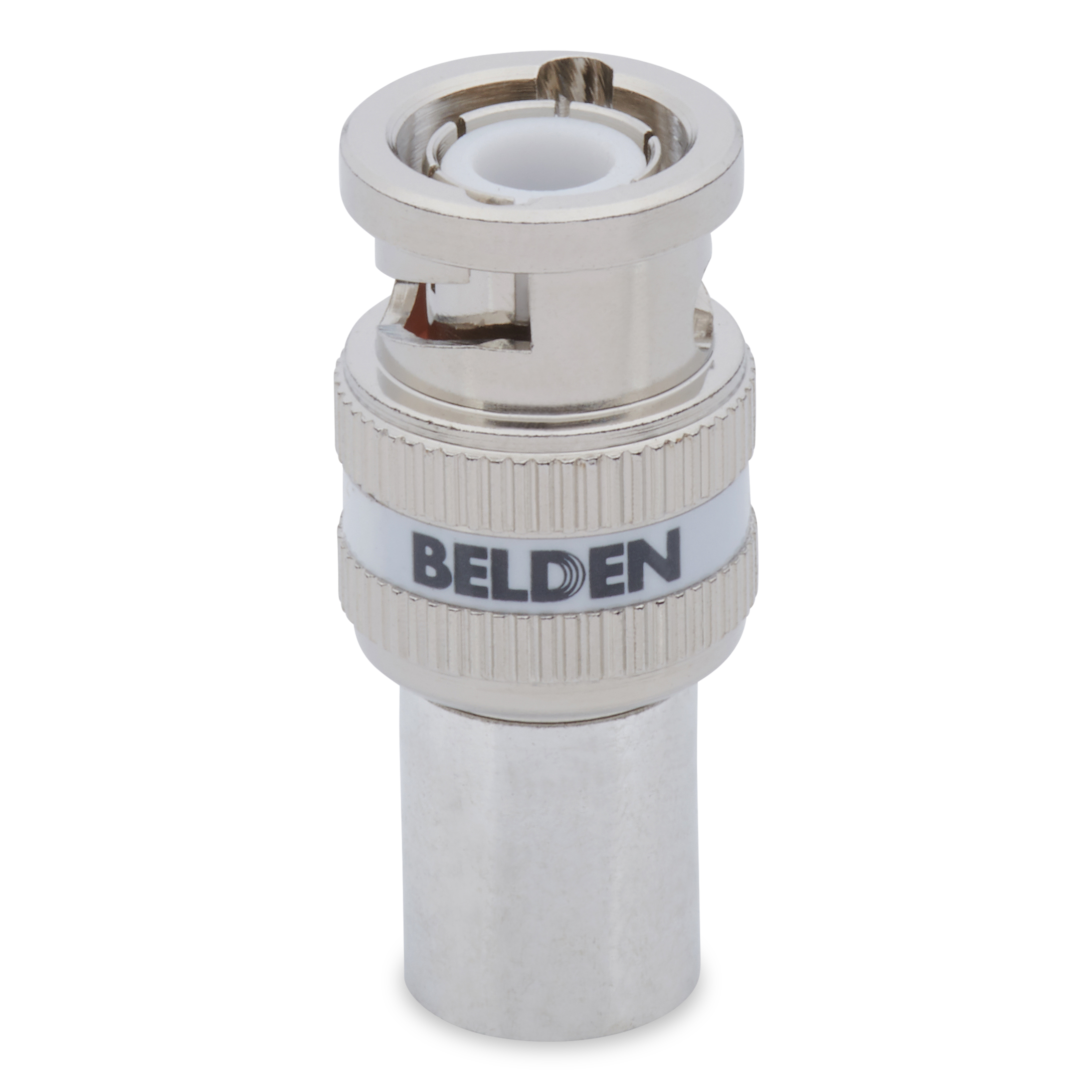

4794RBUHD1 B50

12 GHz Series 7 BNC Connector

...
Series 7, 12 GHz, UHD, BNC, 1 piece connector
Get Product Alerts

Specifications
Physical Characteristics (Overall)

Packaging

25 Pack

Connectors
Materials
Description Material
Nut Polished Nickel
Body Polished Nickel
Contact Brass, Gold Plated
Insulator PTFE
Electrical Characteristics
Impedance
Nominal Characteristic Impedance
75 Ohm
Return Loss
Frequency [MHz] Minimum Return (RL)
5-1485 15 dB
1485-3000 10 dB
3000-6000 7 dB
6000-12000 4 dB

Electrical Characteristics Notes

SMPTE 2082-1 Return Loss or better

Mechanical Characteristics

Footprint/Type

Coax

Connector Interface Type

BNC

Gender

Male - plug

Connector Series Name

UHD

Color Band

White

Locking

No

Tool Compatibility

KTH-1000 (crimp), KTH-201 (crimp die)

Termination Type

Compression

Cable Center Conductor Diameter Limits

0.0460 - 0.0519 in

Cable Dielectric Diameter Limits

0.2283 - 0.2362 in

Cable Outer Jacket Diameter Limits

0.3110 - 0.3267 in

Standards

Series Type

7

Applicable Environmental and Other Programs

Environmental Space

Indoor

EU Directive 2000/53/EC (ELV)

Yes

EU Directive 2011/65/EU (RoHS 2)

Yes

EU Directive 2012/19/EU (WEEE)

Yes

EU Directive 2015/863/EU (RoHS 2 amendment)

Yes

EU Directive Compliance

EU Directive 2003/11/EC (BFR)

CA Prop 65

Yes

Suitability

Suitability - Indoor

Yes

Suitability - Outdoor

No

Plenum/Non-Plenum

Plenum (Y/N)

No

History

Update and Revision

Revision Number: 0.46 Revision Date: 03-04-2023

Part Numbers
Item # Color UPC
4794RBUHD1 B50 White 845671005561
