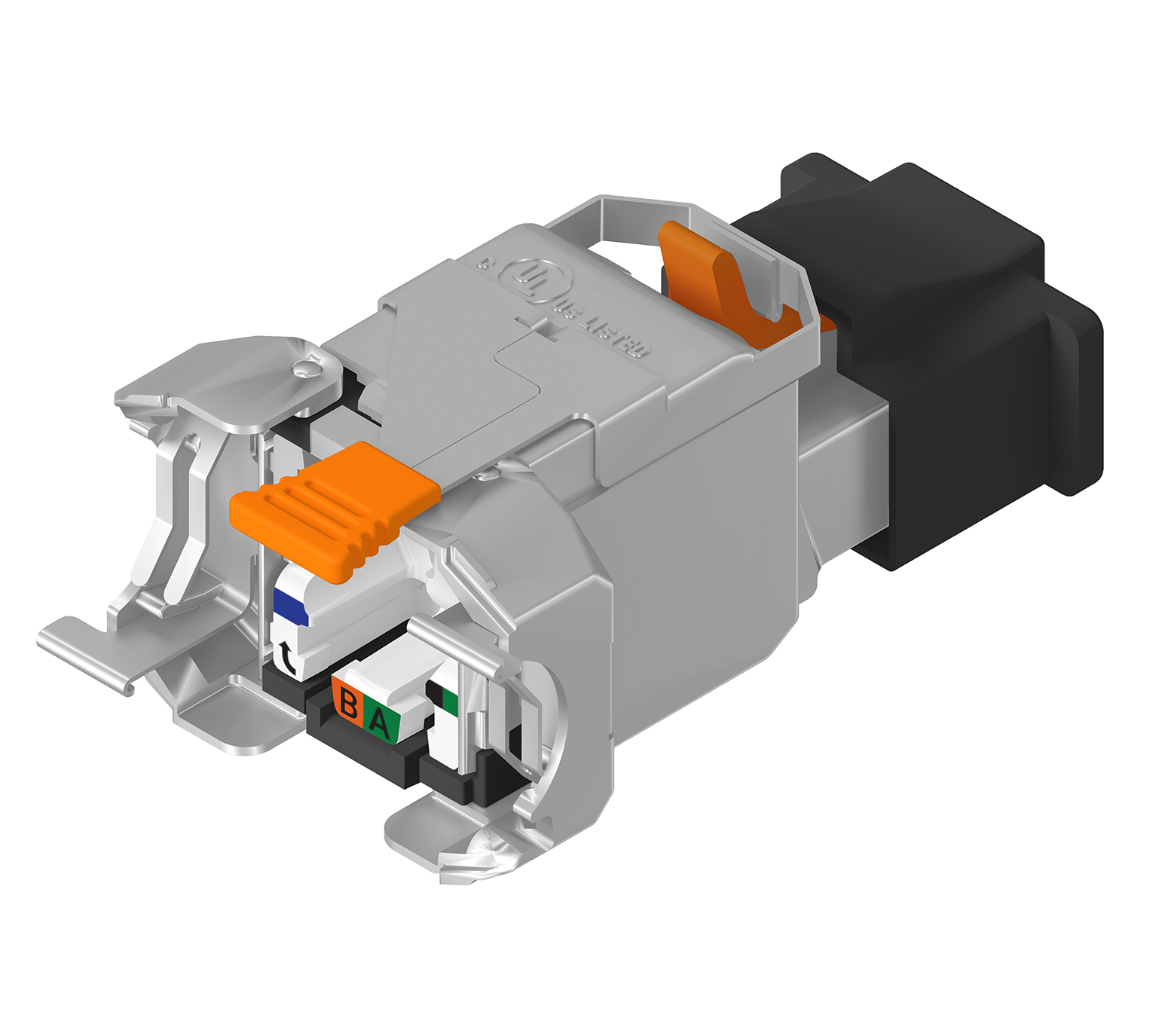

Ind REVConn C6A STP Plug

DataTuff Industrial REVConnect RJ45 Plug CAT6A STP

...
Industrial REVConnect IP20 RJ45 Shielded CAT6A Plug with Universal Core
English
Request Quote
Share
Get Product Alerts

Specifications
Report An Error
Product Overview

Suitable Applications

TIA Screened Category 6A , ISO Class EA, 10GBASE-T

Physical Characteristics (Overall)

Height

0.73

Width

1.1

Depth

1.81

Wiring Scheme

T568A/B

Packaging

Individually packaged in a plastic bag.

Weight

0.048 lbs
Connectors
Materials
Description Material Type
Front Connection Copper Clad Flexible PCB, Gold plated contacts over Palladium/Nickel RJ45
Rear Connection Copper Clad Flexible PCB, Gold plated contacts over Palladium/Nickel Ind REVConnect
Connector Body Nickel plated zinc alloy diecast
Electrical Characteristics

Dielectric Strength

1,000V RMS @ 60 Hz for 1 minute (Signals to Ground)

Current Rating

1.500 A

Insulation Resistance

500 M-Ohm Minimum

Max Contact Resistance

20 mOhm

Termination Resistance

2.5 m-Ohm

Temperature Range

Installation Temperature Range

-40°C To +70°C

Storage Temperature Range

-40°C To +70°C

Operating Temperature Range

-40°C To +70°C

Mechanical Characteristics

Footprint/Type

KeyConnect

Tool Compatibility

RVUTT01 Termination Tool

Plug /Jack Compatibility

RJ45, RJ11

Termination Front Connection

Mated Connection

Termination Front Connection Durability

750 cycles

Termination Rear Connection

Mated Connection

Termination Rear Connection Durability

200 cycles

Cable/Connector Retention

25 lbs.

Connector/Hardware Retention

20 lbs

Plug/Connector Retention

11.250 lbs
Standards

UL Rating

UL94V-0

TIA/EIA Compliance

Category 6A - TIA 568.C.2, Category 6A - ISO/IEC 11801:2002 Ed.2

IEEE Compliance

Power Over Ethernet (PoE) IEEE 802.3at type 1 and 2 (up to 30W), IEEE802.3bt/D1.7 type 3 and 4 (up to 100W), CISCO UPOE (up to 60W), Power over HDBaseTTM (up to 100W)

Applicable Environmental and Other Programs

Environmental Space

Indoor

EU Directive 2002/95/EC (RoHS)

Yes

MII Order #39 (China RoHS)

EUP 50

Flammability, LS0H, Toxicity Testing

UL Flammability

UL2043 Air Handling Spaces

Safety Listing

c(UL)us Listed

Related Part Numbers

Related Parts

Refer to REVConnect WAP - CAMERA Compatibility Guide

Product Notes

Notes

Please see Installation Guide PX106884.

History

Update and Revision

Revision Number: 0.171 Revision Date: 09-19-2024
