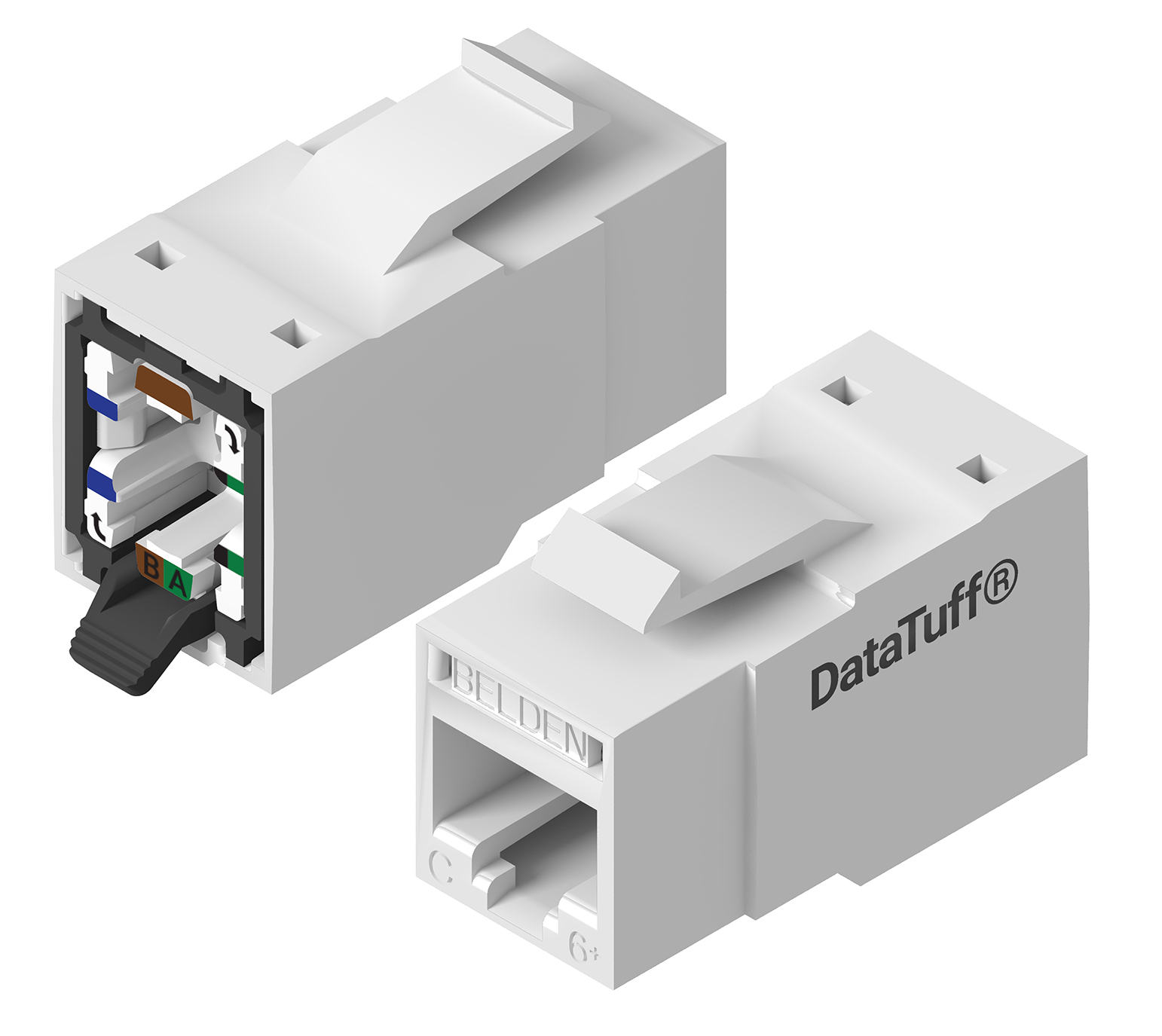

DataTuff Industrial REVConnect RJ45 Jack CAT6 UTP
|
Suitable Applications |
TIA Category 6, ISO Class E, 1GBASE-T |
|---|
|
Height |
0.94 |
|---|---|
|
Width |
0.64 |
|
Depth |
1.337 |
|
Wiring Scheme |
T568A/B |
|
Packaging |
Individually packaged in a plastic bag. |
|
Weight |
0.016 lbs |
| Description | Material | Type |
|---|---|---|
| Front Connection | Copper Clad Flexible PCB, 50uin Gold plated contacts over Nickel | RJ45 |
| Rear Connection | Copper alloy, Gold plated contacts over Nickel | Ind REVConnect |
| Connector Body | PBT glass reinforced UL94V-0 |
|
Dielectric Strength |
1,000V RMS @ 60 Hz for 1 minute (Signals to Ground) |
|---|---|
|
Current Rating |
1.300 A |
|
Insulation Resistance |
500 M-Ohm Minimum |
|
Max Contact Resistance |
20 mOhm |
|
Termination Resistance |
2.5 m-Ohm |
|
Installation Temperature Range |
-40°C To +70°C |
|---|---|
|
Storage Temperature Range |
-40°C To +70°C |
|
Operating Temperature Range |
-40°C To +70°C |
|
Footprint/Type |
KeyConnect |
|---|---|
|
Tool Compatibility |
RVUTT01 Termination Tool |
|
Plug /Jack Compatibility |
RJ45, RJ11 |
|
Termination Front Connection |
Mated Connection |
|
Termination Front Connection Durability |
750 cycles |
|
Termination Rear Connection |
Mated Connection |
|
Termination Rear Connection Durability |
200 cycles |
|
Cable/Connector Retention |
25 lbs. |
|
Connector/Hardware Retention |
20 lbs |
|
Plug/Connector Retention |
11.250 lbs |
|
UL Rating |
UL94V-0 |
|---|---|
|
TIA/EIA Compliance |
Category 6 - TIA 568.C.2, Category 6 - ISO/IEC 11801:2002 Ed.2 |
|
IEEE Compliance |
Power Over Ethernet (PoE) IEEE 802.3at type 1 and 2 (up to 30W), IEEE802.3bt/D1.7 type 3 and 4 (up to 100W), CISCO UPOE (up to 60W), Power over HDBaseTTM (up to 100W) |
|
Environmental Space |
Indoor |
|---|---|
|
EU Directive 2002/95/EC (RoHS) |
Yes |
|
MII Order #39 (China RoHS) |
EUP 50 |
|
UL Flammability |
UL2043 Air Handling Spaces |
|---|---|
|
Safety Listing |
c(UL)us Listed |
|
Related Parts |
Compatible with KeyConnect Faceplates, Adapters, Boxes and Patch Panels |
|---|
|
Notes |
Please see Installation Guide PX106876. |
|---|
|
Update and Revision |
Revision Number: 0.173 Revision Date: 09-19-2024 |
|---|
| Item # | Color |
|---|---|
| RV6IJ2UBK-S1 | Black |
| RVAIJ2UBK-B24 | Black |
| RVAIP2UBK-B24 | Black |
| RVAIU2UBK-B24 | Black |
| RV6IJ2UBL-S1 | Blue |
| RVAIJ2UBL-B24 | Blue |
| RV6IJ2UEW-B24 | Electric White |
| RV6IJ2UEW-S1 | Electric White |
| RVAIJ2UEW-B24 | Electric White |
| RVAIU2UEW-B24 | Electric White |
| RVAIJ2SME-B24 | Metal |
| RVAIP2SME-B24 | Metal |
| RV6IJ2UOR-B24 | Orange |
| RV6IJ2UOR-S1 | Orange |
| RVAIJ2UOR-B24 | Orange |
| RV6IJ2UTE-B24 | Teal |
| RV6IJ2UTE-S1 | Teal |
| RVAIJ2UTE-B24 | Teal |
