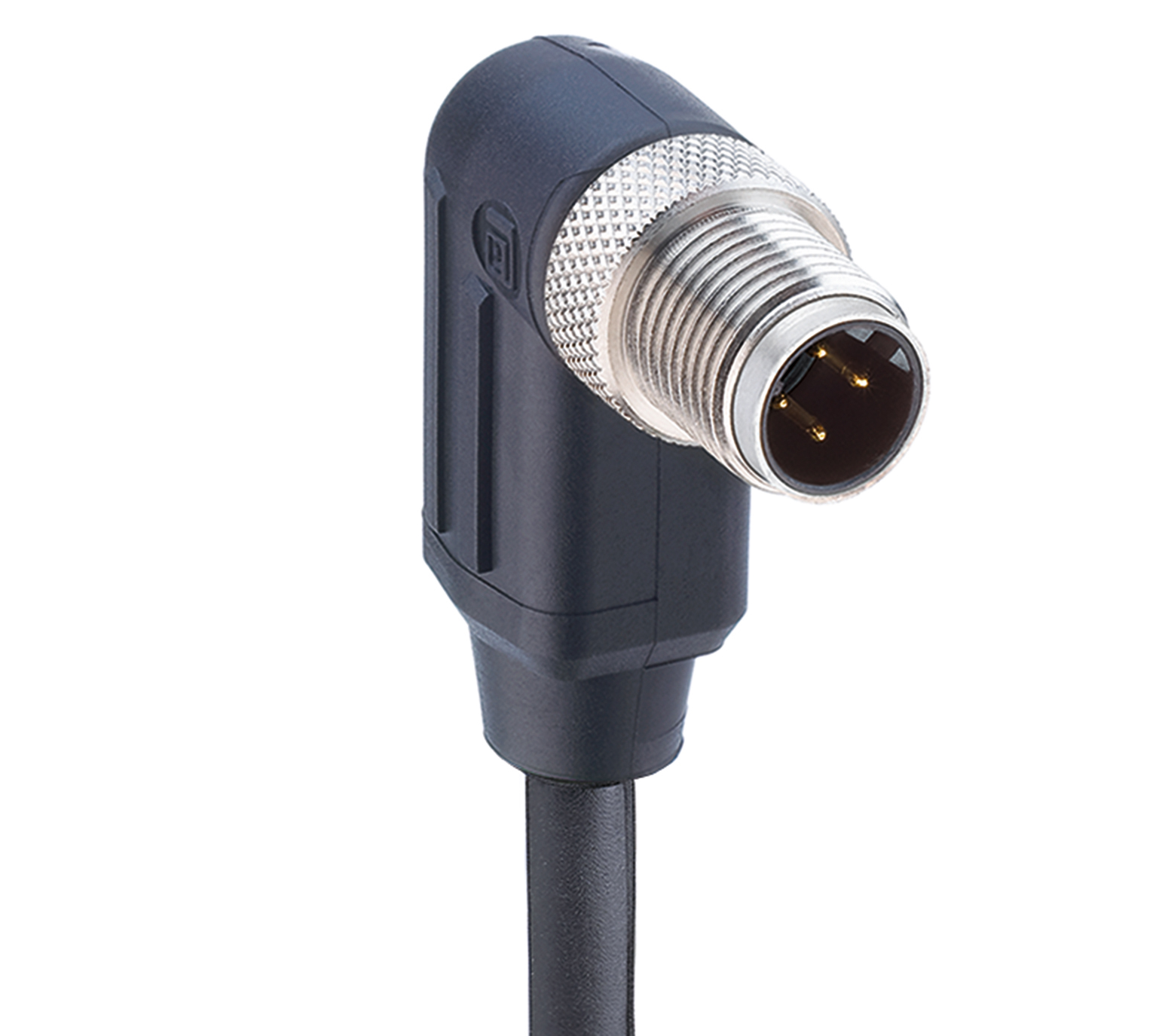

Fast Ethernet Cat5e Data Single-Ended Cordset: M12 Railway, male, angled, 4-pin, D-coded, shielded, black body, 50 V AC / 60 V DC, 4 A; X-FRNC black cable, 4-wires, 0.34 mm²
| Pin 1 | Pin 2 | Pin 3 | Pin 4 |
|---|---|---|---|
| yellow | white | orange | blue |
|
Product Family |
Data Connectors |
|---|---|
|
Product Sub Family |
M12 Railway |
|
Connector Type |
Cordset, single ended |
|
Type of Contact / Gender |
Male |
|
Connector Design |
Angled |
|
Number of Pins |
4 |
|
Coding |
D |
|
Shielding |
Shielded |
|
Attachment Type |
Coupling Screw |
|
Rated Voltage |
60 V |
|
Rated Impulse Voltage |
1.5 kV |
|
Operating Voltage |
50 V AC / 60 V DC |
|
Rated Current* |
4 A |
|
Data Transmission |
Fast Ethernet Cat5e |
|
Data Transmission Rate |
100 Mbit/s |
|
Contact Resistance |
≤ 10 mOhm |
|
Insulation Resistance |
˃ 10^9 Ohm |
|
Mating Cycles |
≤ 100 |
|
Ambient Temperature (Operation)* |
- 40 °C - + 90 °C |
|
Protection Degree / IP Rating** |
IP65, IP67, IP68 (1 m / 24 h), IP69K |
|
Design Standard |
IEC 61076-2-101 |
|
Pollution Degree |
3 acc. to DIN EN 60664-1 (VDE 0110-1) |
|
Overvoltage Category |
III acc. to DIN EN 60664-1 (VDE 0110-1) |
|
Contact Base Material |
CuSn |
|---|---|
|
Contact Plating |
Cu/Au |
|
Contact Bearer Material |
PA |
|
Contact Bearer Color |
Black |
|
Flammability Class (Contact Bearer) |
UL 94 V-0 |
|
Molded Body Material |
PA |
|
Molded Body Color |
Black |
|
Flammability Class (Molded Body) |
UL 94 V-0 |
|
Attachment Material |
CuZn |
|
Attachment Plating |
Nickel-plated |
|
Shielding Material |
Housing: GD-Zn, nickel-plated, Sleeve: CuZn, tin-plated |
|
Fastening Torque (Attachment) |
M 12x1: (50-60) Ncm, hand-tight |
|---|
|
Cable Number |
508 |
|---|---|
|
Conductor Size |
0.34 mm² |
|
Number of Wires |
4 |
|
Minimal Bending Radius (Fixed Inst) |
˃ 10 x D |
|
Minimal Bending Radius (Flexible Inst) |
˃ 5 x D |
|
Conductor material |
Cu |
|
Cable Jacket Material |
X-FRNC |
|
Cable Jacket Color |
black |
|
Cable Diameter D |
ø 6.70 ± 0.30 mm |
|
Wire Insulation Material |
Polyolefin |
|
Insulated Wire Diameter |
ø 1.63 ± 0.05 mm |
|
Overall Shield (Cable) |
Cu-ETP1 tinned |
|
Foil shield |
Al-PT Foil |
|
Ambient Temperature (Fixed Installation) |
- 40 °C - + 90 °C |
|
Ambient Temperature (Flex Installation) |
- 40 °C - + 90 °C |
|
Ambient Temperature (Drag Chain Inst) |
- 5 °C - + 50 °C |
|
Flammability Class (Cable Jacket) |
IEC 60332-1-2, EN50305, IEC60332-3-25 cat D; fire protection Railway vehicles: DIN 5510-2 protection level 1 to 4; CEN/TS 45545-2 HL1-HL3; smoke density acc. to DIN EN 61034-2, EN50268-2: T ˃70% ;toxicity (NF X70-100-1): CITc ˂ 0.7 |
|
Core Colors |
white, blue, yellow, orange |
|
RoHS Compliant |
yes |
|---|
|
Halogenfree |
IEC 60754-1, EN 50267-1-2, HCL ˂ 0.4% |
|---|---|
|
Rail |
Yes |
|
Oil Resistance |
IEC 60811-2-1, EN 50306 par 4.8, EN 50306 par 4.9, EN 50306 par 4.10 |
|
Note Derating |
Notice derating |
|---|---|
|
Protection Degree / IP Rating Note |
** only if mounted and locked in combination with Hirschmann / Lumberg Automation connector. |
|
Note |
Do not connect or disconnect under load. |
| Item # | Item Description | Cable Length |
|---|---|---|
| 934802001 | 0985 508 123/1 M | 1 m |
| 934802002 | 0985 508 123/2 M | 2 m |
| 934802003 | 0985 508 123/5 M | 5 m |
| 934802004 | 0985 508 123/10 M | 10 m |
