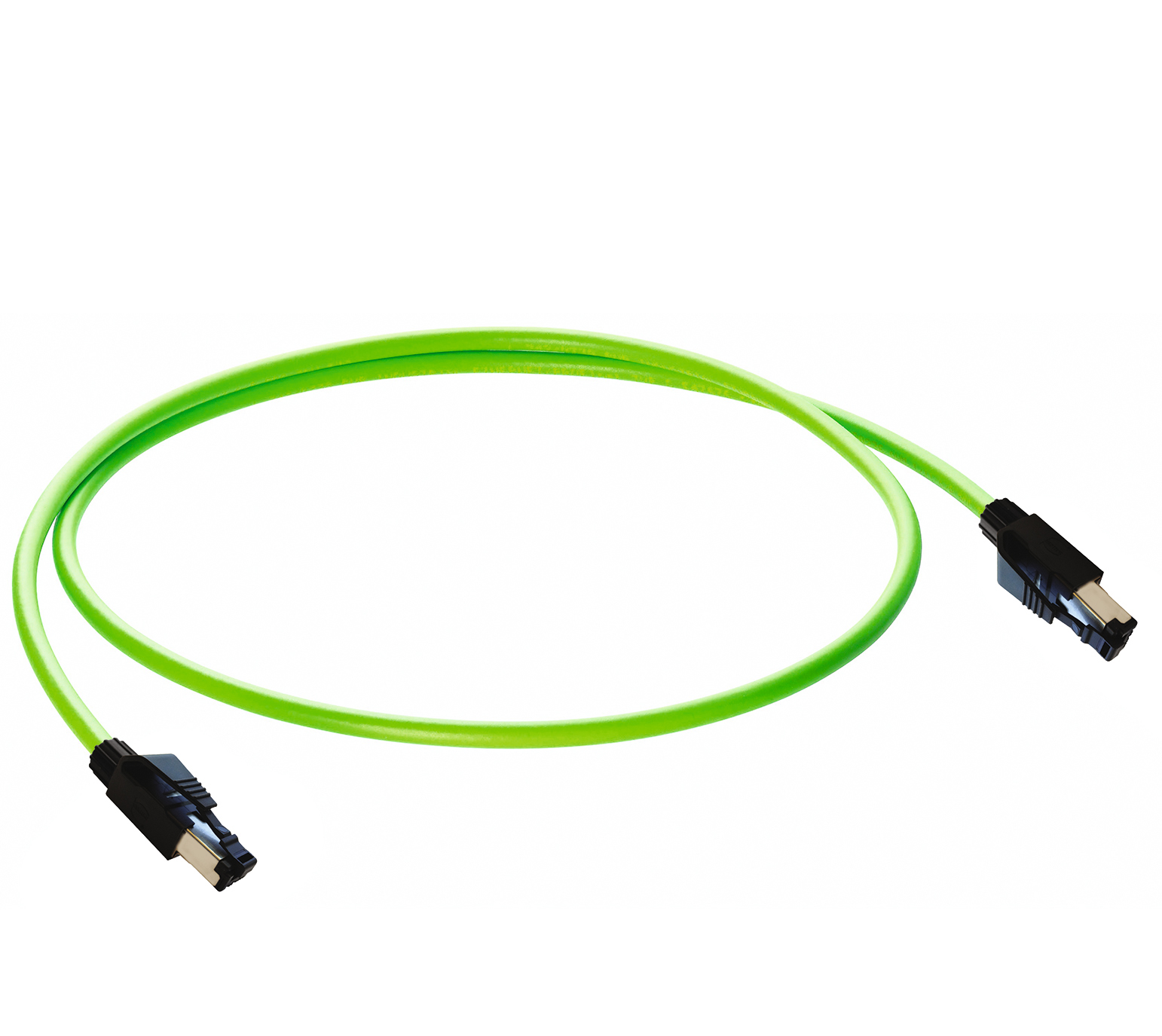

Fast Ethernet Cat5e Data Double-Ended Cordset: Male straight RJ45-coded black RJ45 Field Attachable to male straight RJ45-coded black RJ45 Field Attachable, shielded, 30 V AC / 42 V DC, 1.5 A; TPE green cable, 4-wires, 0.38 mm²
| Pin 1 | Pin 2 | Pin 3 | Pin 4 |
|---|---|---|---|
| yellow | orange | white | blue |
| Pin 1 | Pin 2 | Pin 3 | Pin 4 |
|---|---|---|---|
| yellow | orange | white | blue |
|
Product Family |
Data Connectors |
|---|---|
|
Connector Type |
Cordset, double ended |
|
Shielding |
Shielded |
|
Rated Voltage |
60 V |
|
Rated Impulse Voltage |
1 kV |
|
Operating Voltage |
30 V AC / 42 V DC |
|
Rated Current* |
1.5 A |
|
Data Transmission |
Fast Ethernet Cat5e |
|
Data Transmission Rate |
100 Mbit/s |
|
Product Sub Family |
RJ45 Field Attachable |
|---|---|
|
Type of Contact / Gender |
Male |
|
Connector Design |
Straight |
|
Number of Pins |
4 |
|
Coding |
RJ45 |
|
Contact Resistance |
≤ 20 mOhm |
|
Insulation Resistance |
˃ 10^9 Ohm |
|
Mating Cycles |
≤ 750 |
|
Ambient Temperature (Operation)* |
- 40 °C - + 70 °C |
|
Protection Degree / IP Rating** |
IP20 |
|
Design Standard |
IEC 60603-7 |
|
Overvoltage Category |
I acc. to DIN EN 60664-1 (VDE 0110-1) |
|
Contact Base Material |
CuSn |
|
Contact Plating |
Cu/Au |
|
Contact Bearer Material |
PA |
|
Contact Bearer Color |
Black |
|
Flammability Class (Contact Bearer) |
UL 94 V-0 |
|
Housing Material |
PA |
|
Housing Color |
Black |
|
Flammability Class (Housing) |
UL 94 V-0 |
|
Shielding Material |
Copper, nickel-plated |
|
Note |
Do not connect or disconnect under load. |
|
Cable Number |
542 |
|---|---|
|
Conductor Size |
0.38 mm² |
|
Number of Wires |
4 |
|
Minimal Bending Radius (Fixed Inst) |
˃ 30 mm |
|
Minimal Bending Radius (Flexible Inst) |
˃ 60 mm |
|
Cycles (Bending) |
˃ 5 M |
|
Conductor material |
Cu |
|
Cable Jacket Material |
TPE |
|
Cable Jacket Color |
green matt similarly RAL 6018 |
|
Cable Diameter D |
ø 6.50 ± 0.20 mm |
|
Wire Insulation Material |
PP |
|
Insulated Wire Diameter |
ø 1.50 mm |
|
Overall Shield (Cable) |
Cu-ETP1 tinned |
|
Foil shield |
Al-PT Foil |
|
Ambient Temperature (Fixed Installation) |
- 40 °C - + 90 °C (UL: + 80 °C) |
|
Ambient Temperature (Flex Installation) |
- 40 °C - + 90 °C (UL: + 80 °C) |
|
Ambient Temperature (Drag Chain Inst) |
- 25 °C - + 60 °C |
|
Flammability Class (Cable Jacket) |
CM (UL 1685) |
|
Cable Characteristics |
Exclusion of dangerous materials; Sunlight resistance: UL 1581 sec. 1200 |
|
Core Colors |
white, blue, yellow, orange |
|
Product Sub Family, Side 2 |
RJ45 Field Attachable |
|---|---|
|
Type of Contact / Gender, Side 2 |
Male |
|
Connector Design, Side 2 |
Straight |
|
Number of Pins, Side 2 |
4 |
|
Coding, Side 2 |
RJ45 |
|
Contact Resistance, Side 2 |
≤ 20 mOhm |
|
Insulation Resistance, Side 2 |
˃ 10^9 Ohm |
|
Mating Cycles, Side 2 |
≤ 750 |
|
Ambient Temperature (Operation), Side 2* |
- 40 °C - + 70 °C |
|
Protection Degree / IP Rating, Side 2** |
IP20 |
|
Design Standard, Side 2 |
IEC 60603-7 |
|
Overvoltage Category, Side 2 |
I acc. to DIN EN 60664-1 (VDE 0110-1) |
|
Contact Base Material, Side 2 |
CuSn |
|
Contact Plating, Side 2 |
Cu/Au |
|
Contact Bearer Material, Side 2 |
PA |
|
Contact Bearer Color, Side 2 |
Black |
|
Flammability Class (Contact Bearer), Side 2 |
UL 94 V-0 |
|
Housing Material, Side 2 |
PA |
|
Housing Color, Side 2 |
Black |
|
Flammability Class (Housing), Side 2 |
UL 94 V-0 |
|
Shielding Material, Side 2 |
Copper, nickel-plated |
|
RoHS Compliant |
yes |
|---|
|
Oil Resistance |
UL OIL RES I |
|---|
|
Protection Degree / IP Rating Note |
** only if mounted and locked in combination with Hirschmann / Lumberg Automation connector. |
|---|---|
|
Note Derating |
Notice derating |
|
Update and Revision |
Revision Number: 0.51 Revision Date: 01-19-2023 |
|---|
| Item # | Item Description | Cable Length |
|---|---|---|
| 2121 | 0985 S4742 502/0,5 M | 0.5 M |
| 2123 | 0985 S4742 502/1 M | 1 M |
| 8833 | 0985 S4742 502/1,5 M | 1.5 M |
| 2126 | 0985 S4742 502/2 M | 2 M |
| 2127 | 0985 S4742 502/3 M | 3 M |
| 2128 | 0985 S4742 502/5 M | 5 M |
| 2130 | 0985 S4742 502/8 M | 8 M |
| 2131 | 0985 S4742 502/10 M | 10 M |
| 2132 | 0985 S4742 502/15 M | 15 M |
| 2133 | 0985 S4742 502/20 M | 20 M |
| 5413 | 0985 S4742 502/25 M | 25 M |
| 2134 | 0985 S4742 502/30 M | 30 M |
| 2136 | 0985 S4742 502/35 M | 35 M |
| 9249 | 0985 S4742 502/40 M | 40 M |
| 2137 | 0985 S4742 502/45 M | 45 M |
| 2138 | 0985 S4742 502/50 M | 50 M |
| 21102 | 0985 S4742 502/55 M | 55 M |
| 2139 | 0985 S4742 502/60 M | 60 M |
| 2140 | 0985 S4742 502/70 M | 70 M |
| 12684 | 0985 S4742 502/80 M | 80 M |
