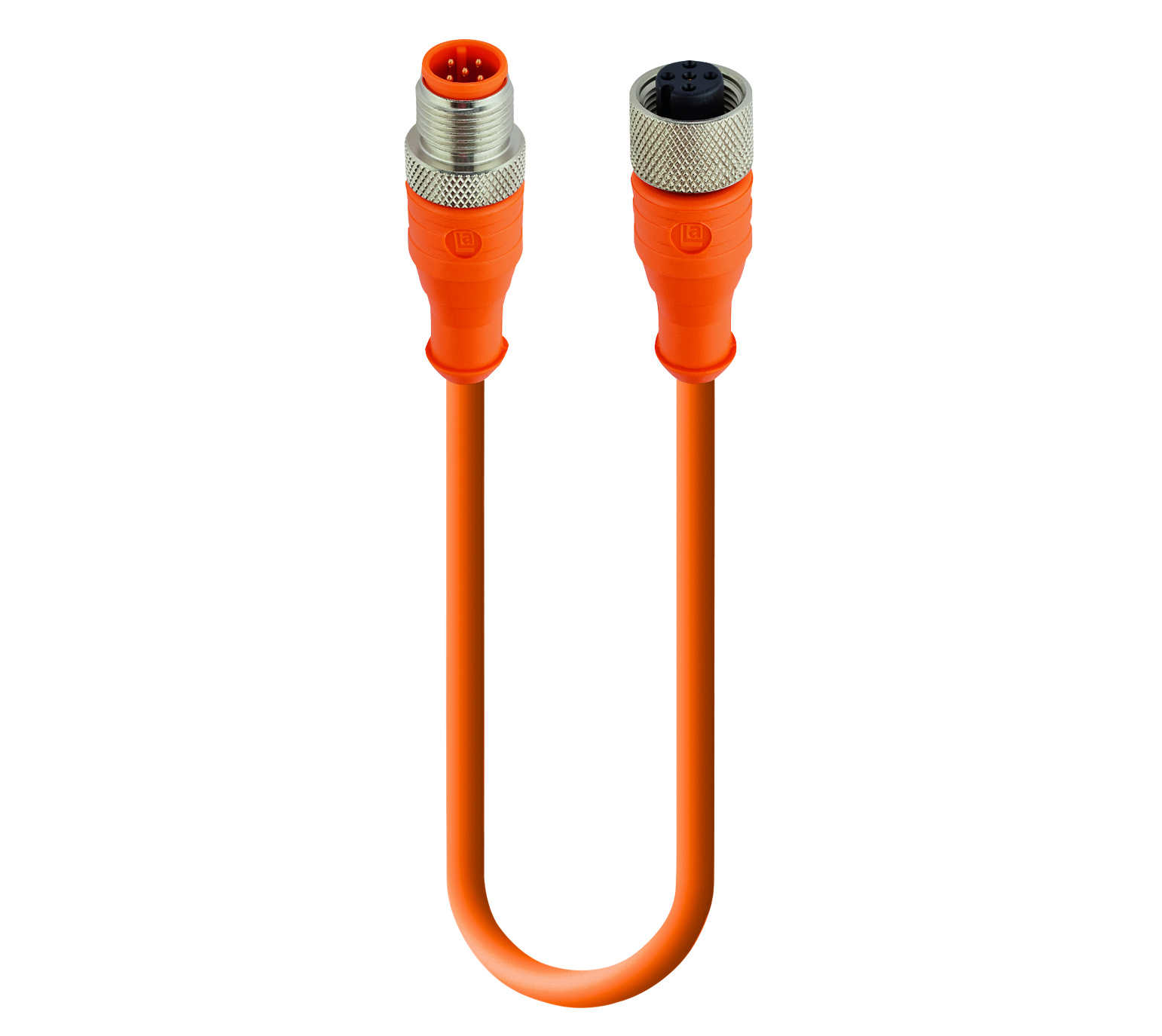

Sensor/Actuator Double-Ended Cordset: Male straight A-coded orange 5-pin M12 Standard connector to female straight A-coded orange 5-pin M12 Standard connector, 50 V AC / 60 V DC, 4 A; PUR orange cable, 3-wires, 0.50 mm²
| Pin 3 | Pin 4 | Pin 5 |
|---|---|---|
| blue | brown | green-yellow |
| Pin 1 | Pin 2 | Pin 3 | Pin 4 | Pin 5 |
|---|---|---|---|---|
| n.c. | n.c. | blue | brown | green-yellow |
|
Product Family |
Sensor / Actuator Connectors |
|---|---|
|
Connector Type |
Cordset, double ended |
|
Shielding |
Unshielded |
|
Rated Voltage |
60 V |
|
Rated Impulse Voltage |
1.5 kV |
|
Operating Voltage |
50 V AC / 60 V DC |
|
Rated Current* |
4 A |
|
Product Sub Family |
M12 Standard |
|---|---|
|
Type of Contact / Gender |
Male |
|
Connector Design |
Straight |
|
Attachment Type |
Coupling Screw |
|
Number of Pins |
5 |
|
Coding |
A |
|
Contact Resistance |
≤ 10 mOhm |
|
Insulation Resistance |
˃ 10^9 Ohm |
|
Mating Cycles |
≤ 100 |
|
Ambient Temperature (Operation)* |
- 40 °C - + 90 °C |
|
Protection Degree / IP Rating** |
IP65, IP67, IP68 (1 m / 24 h), IP69K |
|
Design Standard |
IEC 61076-2-101 |
|
Pollution Degree |
3 acc. to DIN EN 60664-1 (VDE 0110-1) |
|
Overvoltage Category |
III acc. to DIN EN 60664-1 (VDE 0110-1) |
|
Contact Base Material |
CuSn |
|
Contact Plating |
Cu/Au |
|
Contact Bearer Material |
TPU-GF |
|
Contact Bearer Color |
Orange |
|
Flammability Class (Contact Bearer) |
UL 94 HB |
|
Molded Body Material |
TPU |
|
Molded Body Color |
Orange |
|
Flammability Class (Molded Body) |
UL 94 HB |
|
Attachment Material |
CuZn |
|
Attachment Plating |
Nickel-plated |
|
Fastening Torque (Attachment) |
M 12x1: (50-60) Ncm, hand-tight |
|
Note |
Do not connect or disconnect under load. |
|
Cable Number |
241 |
|---|---|
|
Conductor Size |
0.5 mm² |
|
Number of Wires |
3 |
|
Minimal Bending Radius (Fixed Inst) |
˃ 5 x D |
|
Minimal Bending Radius (Flexible Inst) |
˃ 10 x D |
|
Cycles (Bending) |
˃ 2 M |
|
Welding Resistance |
Welding spark resistant |
|
Conductor material |
Cu |
|
Cable Jacket Material |
PUR |
|
Cable Jacket Color |
orange |
|
Cable Diameter D |
ø 5.0 ± 0.2 mm |
|
Wire Insulation Material |
HDPE |
|
Insulated Wire Diameter |
ø 1.50 mm |
|
Ambient Temperature (Fixed Installation) |
- 50 °C - + 80 °C |
|
Ambient Temperature (Flex Installation) |
- 25 °C - + 80 °C |
|
Ambient Temperature (Drag Chain Inst) |
- 25 °C - + 60 °C |
|
Flammability Class (Cable Jacket) |
DIN EN 60332-1-2, VDE 0482-332-1-2, IEC 60332-1-2 |
|
Cable Characteristics |
Mainly plasticizer diffusion free; Good microbes and hydrolysis resistance; Exclusion of PVC and silicone; Seatwater resistance; Coldness flexibility |
|
Product Sub Family, Side 2 |
M12 Standard |
|---|---|
|
Type of Contact / Gender, Side 2 |
Female |
|
Connector Design, Side 2 |
Straight |
|
Attachment Type, Side 2 |
Coupling Nut |
|
Number of Pins, Side 2 |
5 |
|
Coding, Side 2 |
A |
|
Contact Resistance, Side 2 |
≤ 10 mOhm |
|
Insulation Resistance, Side 2 |
˃ 10^9 Ohm |
|
Mating Cycles, Side 2 |
≤ 100 |
|
Ambient Temperature (Operation), Side 2* |
- 40 °C - + 90 °C |
|
Protection Degree / IP Rating, Side 2** |
IP65, IP67, IP68 (1 m / 24 h), IP69K |
|
Design Standard, Side 2 |
IEC 61076-2-101 |
|
Pollution Degree, Side 2 |
3 acc. to DIN EN 60664-1 (VDE 0110-1) |
|
Overvoltage Category, Side 2 |
III acc. to DIN EN 60664-1 (VDE 0110-1) |
|
Contact Base Material, Side 2 |
CuSn |
|
Contact Plating, Side 2 |
Cu/Au |
|
Contact Bearer Material, Side 2 |
TPU |
|
Contact Bearer Color, Side 2 |
Black |
|
Flammability Class (Contact Bearer), Side 2 |
UL 94 HB |
|
Molded Body Material, Side 2 |
TPU |
|
Molded Body Color, Side 2 |
Orange |
|
Flammability Class (Molded Body), Side 2 |
UL 94 HB |
|
Attachment Material, Side 2 |
CuZn |
|
Attachment Plating, Side 2 |
Nickel-plated |
|
O-Ring Material, Side 2 |
FKM, green |
|
Fastening Torque (Attachment), Side 2 |
M 12x1: (50-60) Ncm, hand-tight |
|
RoHS Compliant |
yes |
|---|
|
Halogenfree |
DIN EN 50267-2-1, IEC 60754-1, VDE 0482-267-2-1 |
|---|---|
|
Oil Resistance |
VDE 0472-803 |
|
Protection Degree / IP Rating Note |
** only if mounted and locked in combination with Hirschmann / Lumberg Automation connector. |
|---|---|
|
Note Derating |
Notice derating |
| Item # | Item Description | Cable Length |
|---|---|---|
| 14900 | RST 5-3-RKT 5-3-241/1 M | 1 m |
| 14903 | RST 5-3-RKT 5-3-241/10 M | 10 m |
| 14901 | RST 5-3-RKT 5-3-241/3 M | 3 m |
| 14902 | RST 5-3-RKT 5-3-241/5 M | 5 m |
