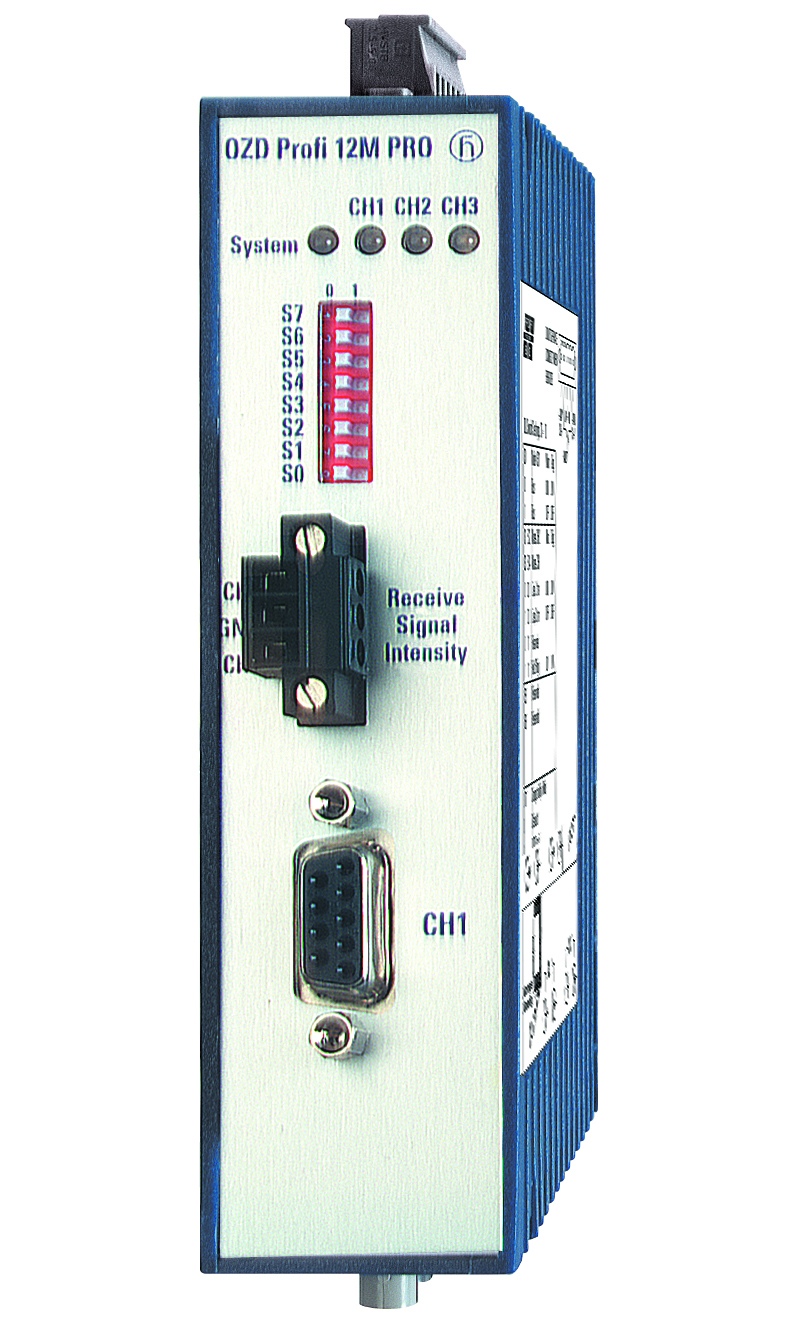

OZD Profi 12M G12 EEC PRO

Interface converter electrical/optical for PROFIBUS-field bus networks; repeater function; for quartz glass FO; extended temperature and humidity range

...
Interface converter electrical/optical for PROFIBUS-field bus networks; repeater function; for quartz glass FO; extended temperature and humidity range
English
Request Quote
Share
Get Product Alerts

Specifications
Report An Error
Product description

Type

OZD Profi 12M G12 EEC PRO

Name

OZD Profi 12M G12 EEC PRO

Description

Interface converter electrical/optical for PROFIBUS-field bus networks; repeater function; for plastic FO; short-haul version

Port type and quantity

2 x optical: 4 sockets BFOC 2.5 (STR); 1 x electrical: Sub-D 9-pin, female, pin assignment according to EN 50170 part 1

Signal Type

PROFIBUS (DP-V0, DP-V1, DP-V2 und FMS)

More Interfaces

Measuring outputs "Optical input power"

3-pin terminal block, screw mounting

Power Supply

5-pin terminal block, screw mounting

Signaling contact

5-pin terminal block, screw mounting

Network size - length of cable

Multimode fiber (MM) 50/125 µm

3000 m, 13 dB link budget at 860 nm; A = 3 dB/km

Multimode fiber (MM) 62.5/125 µm

3000 m, 15 dB link budget at 860 nm; A = 3.5 dB/km

Multimode fiber HCS (MM) 200/230 µm

1000 m 18 dB link budget at 860 nm; A = 8 dB/km, 3 dB reserve

Power requirements

Current consumption

max. 200 mA

Input voltage range

-7 V ... +12 V

Operating Voltage

18 ... 32 VDC, typ. 24 VDC

Power consumption

4.8 W

Redundancy functions

HIPER-Ring (ring structure), redundant 24 V infeed
Power Output

Output voltage/output current (pin6)

5 VDC +5%, -10%, short circuit-proof/90 mA

Ambient conditions

Operating temperature

-20-+60 °C

Storage/transport temperature

-40-+70 °C

Relative humidity (also condensing)

10-100 %

Dimensions (WxHxD)

35 x 156 x 119 mm

Weight

200 g

Housing Material

plastics

Mounting

DIN rail

Protection class

IP20

Approvals

Basis Standard

EU Conformity, AUS Conformity Australia

Safety of information technology equipment

cUL508

Hazardous locations

ISA 12.12.01 Class 1 Div. 2, ATEX Zone 2
Reliability

Guarantee

60 months (please refer to the terms of guarantee for detailed information)

Scope of delivery and accessories

Scope of delivery

device, start-up instructions
