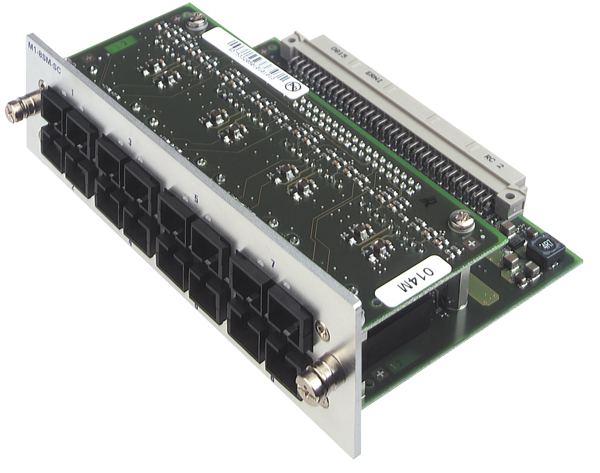

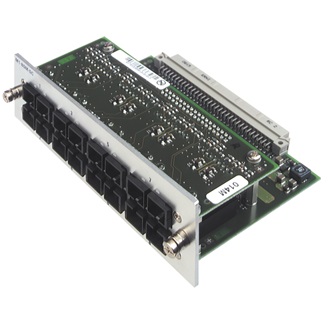

M1-8SM-SC

Media module (8 x 100BaseFX Singlemode DSC port) for MACH102

...
8 x 100BaseFX Singlemode DSC port media module for modular, managed, Industrial Workgroup Switch MACH102
English
Request Quote
Share
Get Product Alerts

Specifications
Report An Error
Product description

Description

8 x 100BaseFX Singlemode DSC port media module for modular, managed, Industrial Workgroup Switch MACH102

Network size - length of cable

Single mode fiber (SM) 9/125 µm

0 - 32,5 km, 16 dB Link Budget at 1300 nm, A = 0,4 dB/km D = 3,5 ps/(nm*km)

Power requirements

Power consumption

10 W

Power output in BTU (IT)/h

34

Ambient conditions

MTBF (Telecordia SR-332 Issue 3) @ 25°C

1 224 916 h

Operating temperature

0-50 °C

Storage/transport temperature

-20-+85 °C

Relative humidity (non-condensing)

10-95 %

Dimensions (WxHxD)

138 mm x 90 mm x 42mm

Weight

180 g

Mounting

Media Module

Protection class

IP20

EMC interference immunity

EN 61000-4-2 electrostatic discharge (ESD)

4 kV contact discharge, 8 kV air discharge

EN 61000-4-3 electromagnetic field

10 V/m (80-2700 MHz)

EN 61000-4-4 fast transients (burst)

2 kV power line, 4 kV data line

EN 61000-4-5 surge voltage

power line: 2 kV (line/earth), 1 kV (line/line), 4 kV data line

EN 61000-4-6 Conducted Immunity

10 V (150 kHz-80 MHz)

EMC emitted immunity

EN 55022

EN 55022 Class A

FCC CFR47 Part 15

FCC 47CFR Part 15, Class A

Approvals

Safety of industrial control equipment

cUL 508

Safety of information technology equipment

cUL 60950-1
Reliability

Guarantee

60 months (please refer to the terms of guarantee for detailed information)

Scope of delivery and accessories

Scope of delivery

Media module, user manual

Further Instructions

Product Documentation

https://www.doc.hirschmann.com

Certificates

https://www.doc.hirschmann.com/certificates.html

History

Update and Revision

Revision Number: 0.123 Revision Date: 11-20-2024

Show All Specifications
Hide Specifications
Part Numbers
Item # Type
943970201 M1-8SM-SC
