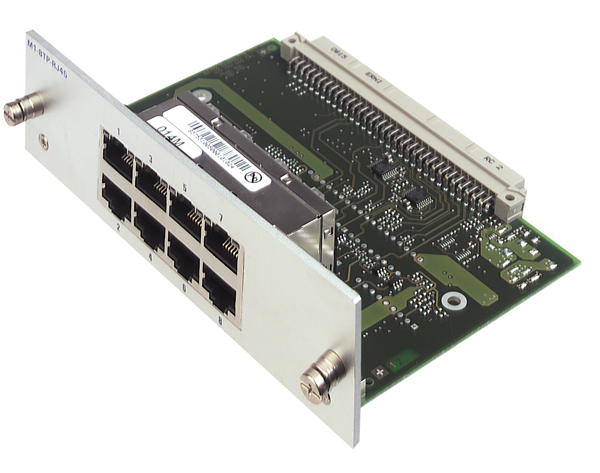

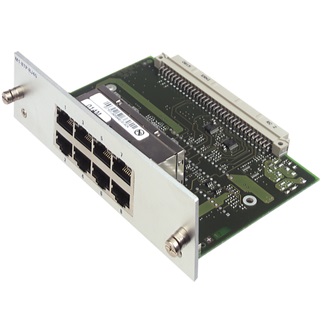

Product Number: M1-8TP-RJ45

Media module (8 x 10/100BaseTX RJ45) for MACH102

8 x 10/100BaseTX RJ45 port media module for modular, managed, Industrial Workgroup Switch MACH102

  • Availability:
    Global
  • Global inventory:
    Available
M1-8TP-RJ45
  • M1-8TP-RJ45
1 of 1
  • Specifications
  • Part numbers
  • Resources

Specifications

Report An Error

Description

8 x 10/100BaseTX RJ45 port media module for modular, managed, Industrial Workgroup Switch MACH102

Twisted pair (TP)

0-100 m

Power consumption

2 W

Power output in BTU (IT)/h

7

MTBF (Telecordia SR-332 Issue 3) @ 25°C

10 303 652 h

Operating temperature

0-50 °C

Storage/transport temperature

-20-+85 °C

Relative humidity (non-condensing)

10-95 %

Dimensions (WxHxD)

138 mm x 90 mm x 42mm

Weight

210 g

Mounting

Media Module

Protection class

IP20

EN 61000-4-2 electrostatic discharge (ESD)

4 kV contact discharge, 8 kV air discharge

EN 61000-4-3 electromagnetic field

10 V/m (80-2700 MHz)

EN 61000-4-4 fast transients (burst)

2 kV power line, 4 kV data line

EN 61000-4-5 surge voltage

power line: 2 kV (line/earth), 1 kV (line/line), 4 kV data line

EN 61000-4-6 Conducted Immunity

10 V (150 kHz-80 MHz)

EN 55022

EN 55022 Class A

FCC CFR47 Part 15

FCC 47CFR Part 15, Class A

Safety of industrial control equipment

cUL 508

Safety of information technology equipment

cUL 60950-1

Guarantee

60 months (please refer to the terms of guarantee for detailed information)

Scope of delivery

Media module, user manual

Product Documentation

https://www.doc.hirschmann.com

Certificates

https://www.doc.hirschmann.com/certificates.html

Update and Revision

Revision Number: 0.121 Revision Date: 03-25-2025

Update and Revision

Revision Number: 0.121 Revision Date: 03-25-2025

Part Numbers

Item # Type
943970001 M1-8TP-RJ45
