FC4D06SDFM

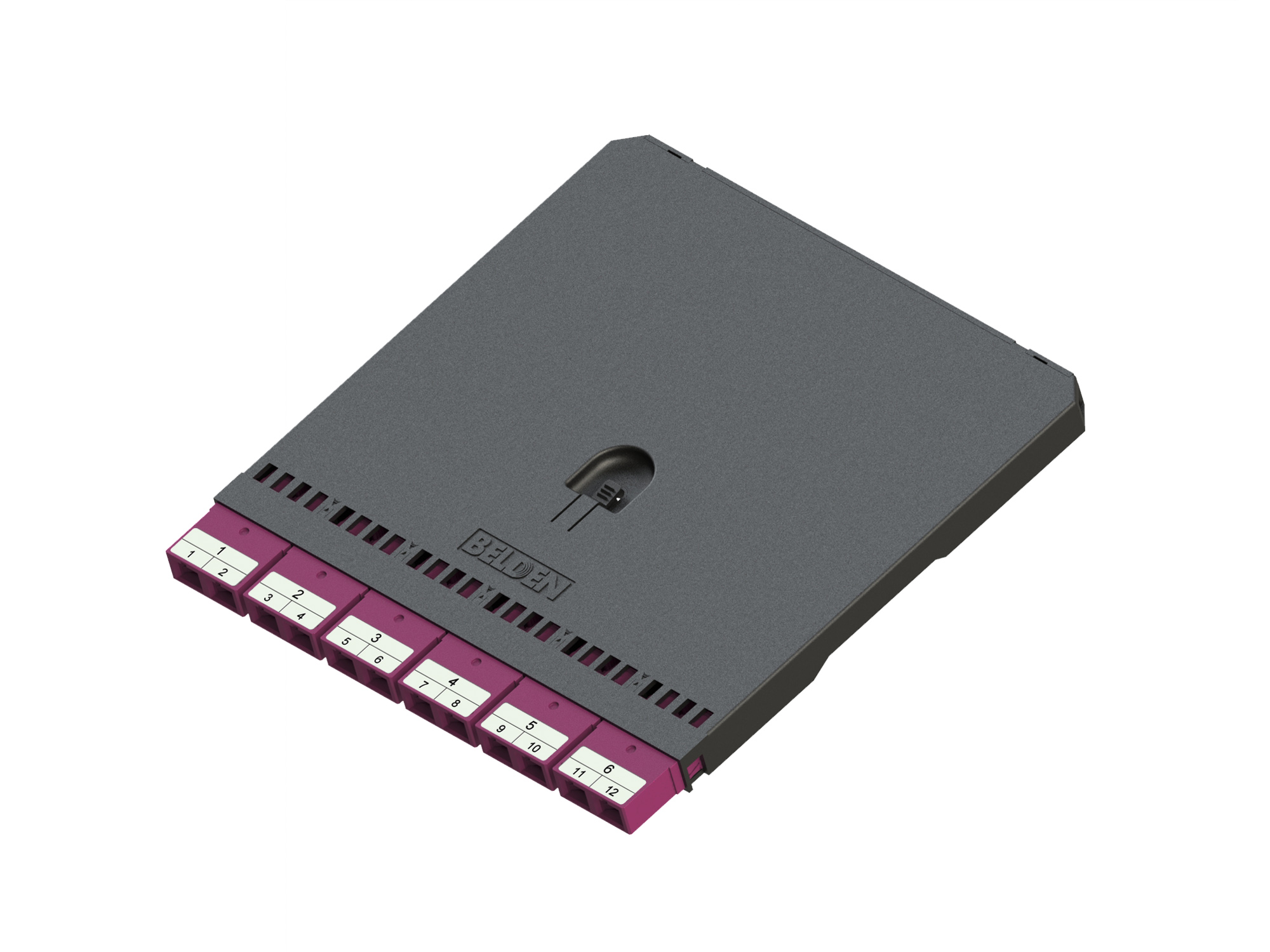

FX DCX Splice Cassette, OM4, 06 Ports SC Duplex with 250µm Pigtail Ribbon

...
FX DCX Splice Cassette, OM4, 06 Ports SC Duplex with 250µm Pigtail Ribbon, Erika Violet Adapters
English
Request Quote
Share
Get Product Alerts

Specifications
Report An Error
Product Overview

Suitable Applications

DCX, Data Centers, Central Equipment Room

Construction
Fiber Cable Construction
Fiber Type
OM4

Weight

0.460 lbs

Height

0.500 in

Width

6.830 in

Length

7.430 in
Physical Specifications

Max Capacity

12 Fibers

Mechanical Characteristics
Mechanical Tests
Description

Front Connection

Static

Temperature Range

Operating Temperature Range

-10°C to +60°C

Storage Temperature Range

-10°C to +75°C

Product Material
Materials
Description Material Color Type
Cassette Assembly Plastic - UL94V-0 Black
Front Connector Body Plastic - UL94V-0 Erika Violet SC Duplex
Adapter Sleeve Zirconia-Ceramic
Fiber Connector Performance
Connector Type Max. Insertion Loss Min. Return Loss
SC Duplex 0.15 dB -25 dB
Standards

MII Order #39 (China RoHS)

EUP 50

Related Part Numbers

Included Parts

250µm mass fusion pigtails, splice chip, splice protection sleeve,cable retention rubber: 2mm & 3mm

Related Parts

DCX Frames, Modules, and Patch Panels

Product Notes

Packaging

Individually packaged in a plastic shell, Shipped in cardboard box

History

Update and Revision

Revision Number: 0.37 Revision Date: 08-12-2024

Show All Specifications
Hide Specifications
Part Numbers
Item # Connector Type
FC4D06SDFM SC Duplex
