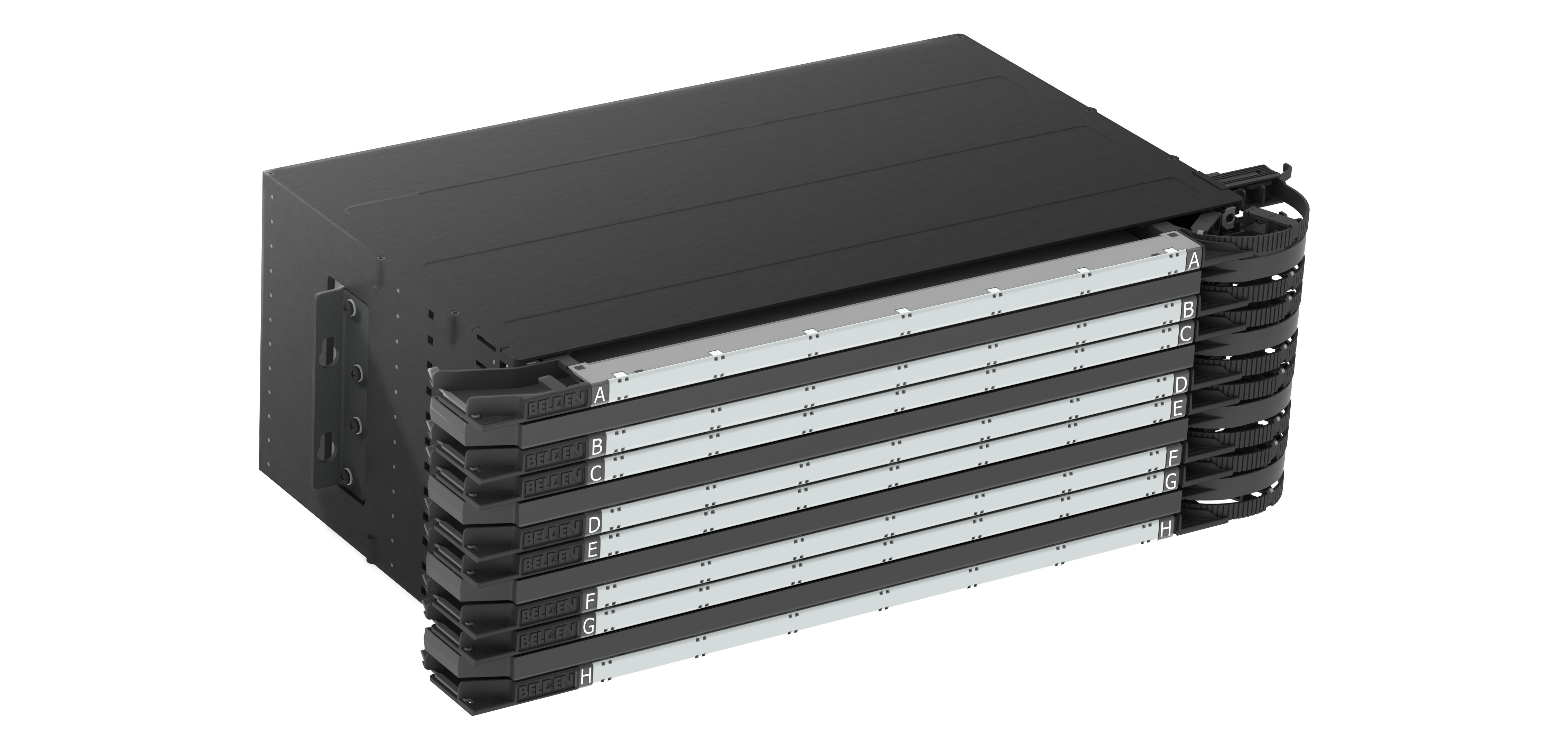

DCX-384F-RL

DCX HOUSING 384F RIGHT-LEFT, W/8 TRAYS, TRUNK & PCORD MGT

...
DCX HOUSING 384F-FIBER, RIGHT-LEFT CABLE FLOW, WITH 8 TRAYS, TRUNK & PATCH MANAGEMENT
English
Request Quote
Share
Get Product Alerts

Specifications
Report An Error
Product Overview

Suitable Applications

Optical Distribution Frame, Data Centers, Central Equipment Room

Construction

Weight

12.57 lbs

Height

6.729 in

Width

20.807 in

Depth

11.81 in
Physical Specifications

Max Capacity

Holds 32 Cassettes/Frames, Base 12 or 48 Cassettes, Base-8

Mechanical Characteristics
Mechanical Tests
Description
Temperature Range

Operating Temperature Range

-10°C to +60°C

Storage Temperature Range

-40°C to +70°C

Product Material
Materials
Description Material Color
Housing Steel Black
Housing PC/ABS
Housing Polycarbonate
Standards

MII Order #39 (China RoHS)

EUP 50

Related Part Numbers

Related Parts

#12-24 machine screw Phillips (4x). Rail cage nuts (4x)

Product Notes

Packaging

Individually packaged in a cardboard box

Notes

Use 144F and 288 Fiber Trunk is not recommended for this housing.For more information, please refer to our web site at http://www.belden.com.

History

Update and Revision

Revision Number: 0.50 Revision Date: 07-19-2024
