FC5D12LDFMXL

Faceplates and Panels - DCX Splice Cassette LC Duplex

...

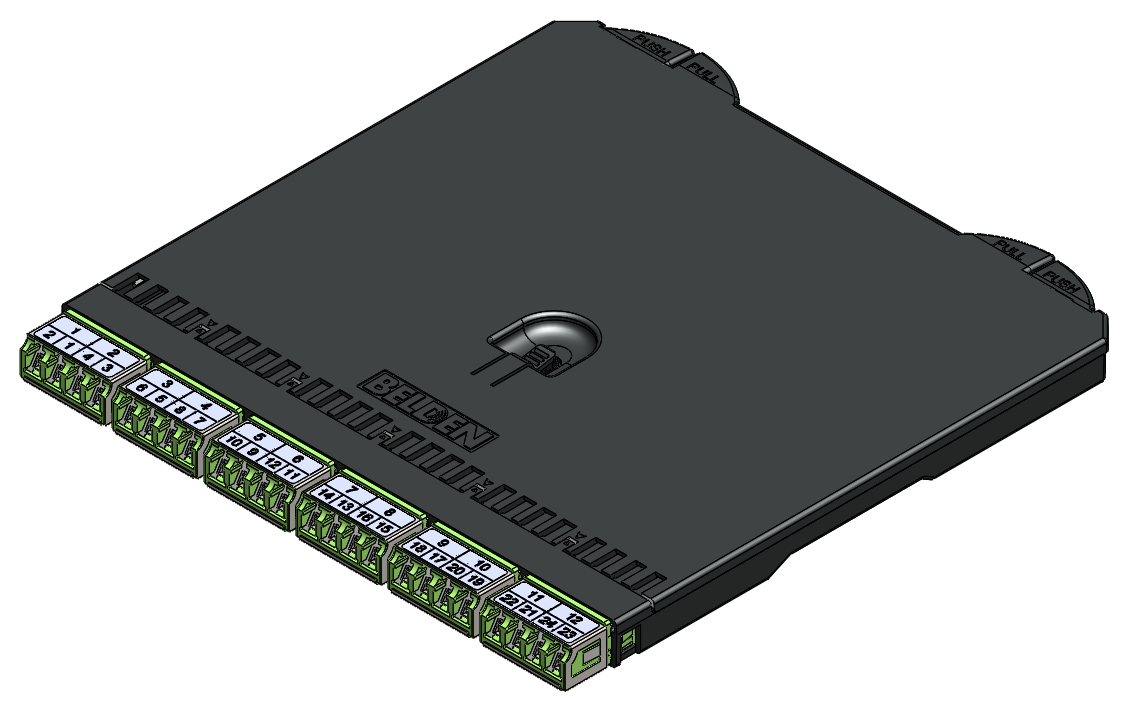

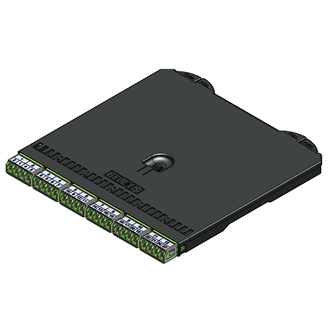

FX DCX SPLICE CASSETTE, OM5, 12 PORTS, LC DUPLEX (FLIPPED PAIR) WITH 250µm RIBBON PIGTAIL, LIME GREEN ADAPTERS
English
Request Quote
Share
Get Product Alerts

Specifications
Report An Error
Product Overview

Environmental Space

Indoor

Suitable Applications

DCX, Data Centers, Central Equipment Room

Construction
Fiber Cable Construction
Fiber Type
OM5

Weight

0.437 lbs

Height

0.500 in

Width

6.830 in

Length

7.190 in
Physical Specifications

Max Capacity

24Fibers, 12 LC Duplex Ports

Mechanical Characteristics
Mechanical Tests
Description
Temperature Range

Operating Temperature Range

-10°C to 60°C

Storage Temperature Range

-10°C to 75°C

Product Material
Materials
Description Material Color Type
Cassette Assembly Plastic - UL94V-0 Black
Front Connector Body Plastic - UL94V-0 Lime Green LC Duplex w/ Internal Shutters
Adapter Sleeve Zirconia-Ceramic
Fiber Connector Performance
Description Max. Insertion Loss Min. Return Loss
LC Duplex 0.15 dB -30 dB
Standards

MII Order #39 (China RoHS)

EUP 50

Related Part Numbers

Related Parts

DCX,Frames Modules & Patch Panels

Product Notes

Packaging

Individually packaged in a plastic shell, Shipped in cardboard box

Notes

For more information, please refer to our web site at http://www.belden.com. This product image is for representation only.

History

Update and Revision

Revision Number: 0.8 Revision Date: 02-06-2024
