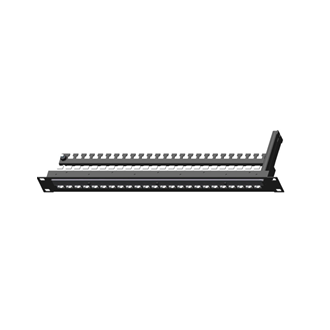

PPRO PP 1U 24P C6+ JACK UTP

PPC6UR-PatchPro 24-port STP CAT6+ iPLM Ready Unshielded Panel,1U, Packaging including with CAT 6 RJ45 Unshielded Modular Jack

...
PatchPro 24-port UTP CAT6+ iPLM Ready Unshielded Panel,1U, Packaging including with CAT 6 RJ45 Unshielded Modular Jack

Regions Available: EMEA | Asia Pacific
English
Request Quote
Share
Get Product Alerts

Specifications
Report An Error
Product Overview

Suitable Applications

Horizontal and building cabling for Intelligent (RFID based) Patching. Support current and future Category 6 and 5e applications, such as: 1000Base-T (Gigabit Ethernet), 100 Base-T, 10 Base-T, FDDI, ATM

Physical Characteristics (Overall)

Height

45 mm

Width

483 mm

Depth

113 mm

Port Count

24 Port

Front Connection

Flush

Packaging

Individually packaged in a box.

Connectors
Materials
Description Material Color
Panel Zinc-coated Steel Black
Body of connector Plastic Black
Construction and Dimensions

Max Capacity

24 connectors

Electrical Characteristics

Dielectric Strength

1,000 V RMS @ 60Hz for 1 minute

Current Rating

1.500 A

Insulation Resistance

500 M-Ohm Minimum

Max Contact Resistance

20 mOhm

Termination Resistance

2.5 mOhm

Temperature Range

Installation Temperature Range

-10°C To +60°C

Storage Temperature Range

-40°C To +70°C

Operating Temperature Range

-10°C To +60°C

Mechanical Characteristics

Footprint/Type

Keystone

Plug /Jack Compatibility

RJ45

Termination Type

Universal T568A/B

Standards

Data Category

Category 6

TIA/EIA Compliance

ISO/IEC 11801-1:2017(Ed.3) ; TIA 568-C.3; EN 50173:2018

Applicable Environmental and Other Programs

Environmental Space

Indoor

EU Directive 2011/65/EU (RoHS 2)

Yes

MII Order #39 (China RoHS)

EUP 50

Related Part Numbers

Related Parts

PatchPro Connectivity, CAT6+ JACK STP, PPRO PC CAT6 STP LSZH, Upgrade RFID kit

History

Update and Revision

Revision Number: 0.46 Revision Date: 11-19-2024

Show All Specifications
Hide Specifications
Part Numbers
Item # Color Put-Up Type
PPC6UR Black Box
