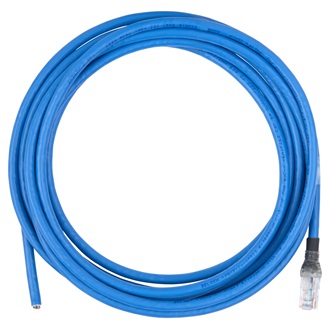

10GX UTP CMR Bonded Pigtails
|
Suitable Applications |
IBDN System 10GX, TIA Category 6A, ISO Class EA, 10GBASE-T |
|---|
|
Total Number of Pairs |
4 |
|---|
|
Overall Nominal Diameter |
0.285 in |
|---|---|
|
Packaging |
Individually packaged in a clear plastic bag. |
| Description | Material | Color |
|---|---|---|
| Boot | Elastomer | Translucent |
| Conductor | BC - Bare Copper | |
| Front Connection | Blades Phosphor Bronze with 50u inch Gold over Nickel Plating | |
| Inner Jacket | PVC - Polyvinyl Chloride | |
| Insulation | PO - Polyolefin | |
| Outer Jacket | PVC - Polyvinyl Chloride |
|
Dielectric Strength |
1,000 V RMS @ 60 Hz for 1 minute |
|---|---|
|
Current Rating |
1.500 A |
|
Insulation Resistance |
500 M-Ohm Minimum |
|
Max Contact Resistance |
20 mOhm |
|
Installation Temperature Range |
-10°C To +60°C |
|---|---|
|
Storage Temperature Range |
-40°C To +70°C |
|
Operating Temperature Range |
-10°C To +60°C |
|
Min Bend Radius (Overall Cable) |
1.040 in |
|---|---|
|
Plug /Jack Compatibility |
RJ45 |
| Connection | Durabilities |
|---|---|
| Mated Connection | 750 Cycles |
|
UL Rating |
Riser |
|---|---|
|
Data Category |
Category 6A |
|
TIA/EIA Compliance |
Category 6A - TIA 568-C.2, Class EA - ISO/IEC 11801:2002 Ed.2 Amendment 2 |
|
Other Standards |
FCC Part 68, Subpart F, IEC 60603-7 |
|
Environmental Space |
Riser |
|---|---|
|
EU Directive 2002/95/EC (RoHS) |
Yes |
|
MII Order #39 (China RoHS) |
EUP 50 |
|
Safety Listing |
ACA, c(UL)us Listed |
|---|
|
Related Parts |
10GX Modular Jacks and Couplers, 10GX Patch Panels, 10GX IDC Blocks |
|---|
|
Labeling |
Belden Part Number, Performance Acronym, Wiring Scheme and Cord Length |
|---|
|
Update and Revision |
Revision Number: 0.236 Revision Date: 05-10-2023 |
|---|
| Item # | Color | Length |
|---|---|---|
| CA21300015 | Black | 15 ft |
| CA21300025 | Black | 25 ft |
| CA21300035 | Black | 35 ft |
| CA21300050 | Black | 50 ft |
| CA21206055 | Blue | 55 ft |
| CA21206100 | Blue | 100 ft |
| CA21206120 | Blue | 120 ft |
| CA21206225 | Blue | 225 ft |
| CA21306015 | Blue | 15 ft |
| CA21306025 | Blue | 25 ft |
| CA21306035 | Blue | 35 ft |
| CA21306050 | Blue | 50 ft |
| CA21208010 | Gray | 10 ft |
| CA21208015 | Gray | 15 ft |
| CA21208025 | Gray | 25 ft |
| CA21208035 | Gray | 35 ft |
| CA21208065 | Gray | 65 ft |
| CA21208100 | Gray | 100 ft |
| CA21208165 | Gray | 165 ft |
| CA21208200 | Gray | 200 ft |
| CA21208250 | Gray | 250 ft |
| CA21208325 | Gray | 325 ft |
| CA21308015 | Gray | 15 ft |
| CA21308025 | Gray | 25 ft |
| CA21308035 | Gray | 35 ft |
| CA21308050 | Gray | 50 ft |
| CA21308100 | Gray | 100 ft |
| CA21203015 | Orange | 15 ft |
| CA21203100 | Orange | 100 ft |
| CA21309015 | White | 15 ft |
| CA21309025 | White | 25 ft |
| CA21309035 | White | 35 ft |
| CA21309050 | White | 50 ft |
