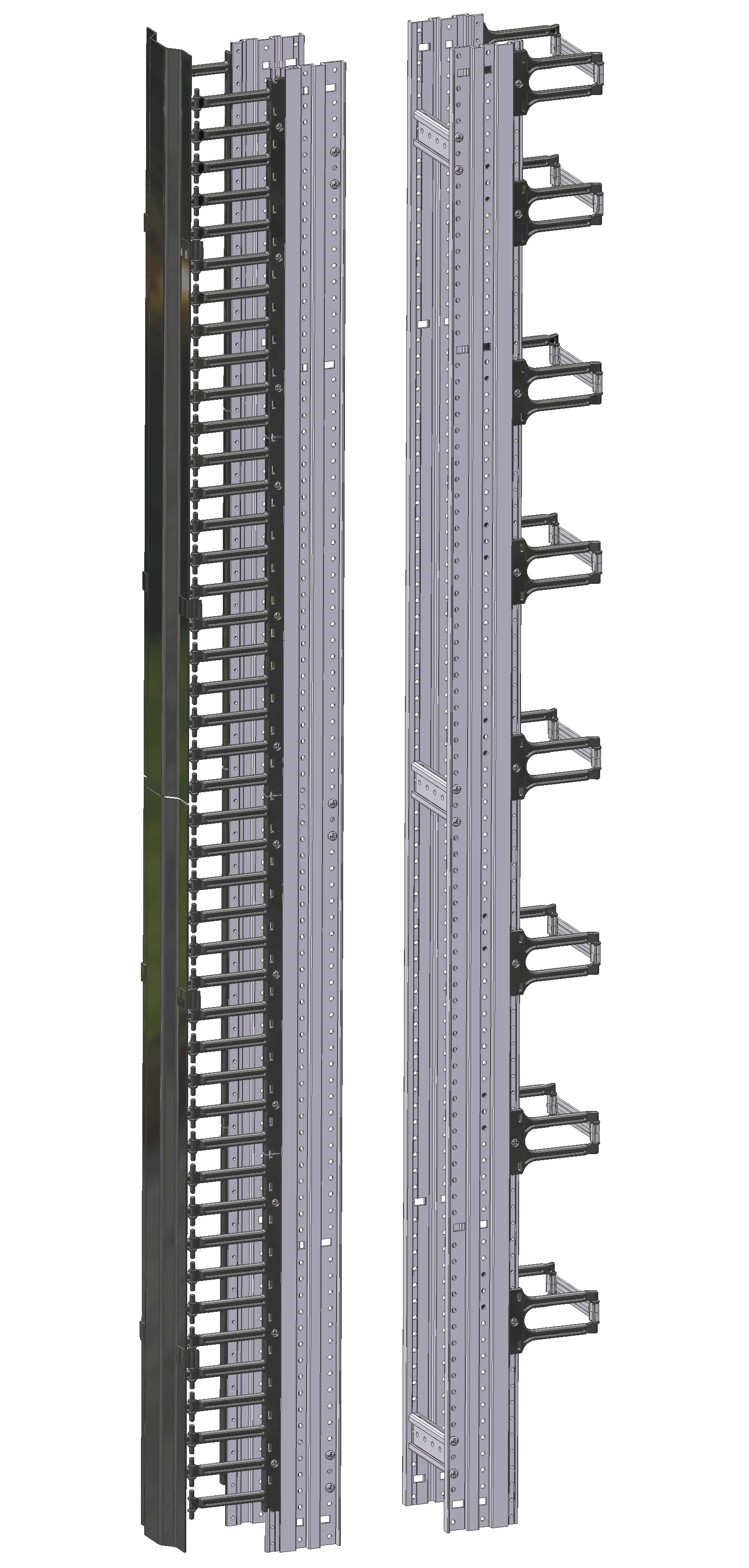

BHVHLXX

Belden High Density Vertical Cable Managers

...
Double-Sided High/Low Density Vertical Cable Managers (See table below for part numbers)

Regions Available: Global
English
Request Quote
Share
Get Product Alerts

Specifications
Report An Error
Application

Product Overview

Modular High-Density Racking System (HDRS) for network cross-connect. HDRS is a well-engineered cross connect and hosting platform that offers you a high level of versatility and flexibility in systems design for ultimate network density and management. High-Density vertical manager half door allows easy cable access and hinging of the doors to both right and left side.

Benefits

One standard hand tools are required for quick installation and simple field reconfiguration and modification, Designed to work seamlessly with Belden IBDN copper and fiber systems, cable management fingers align with the rack RUs for easy routing of patch cords to vertical managers, eliminating the need for horizontal managers, High level of modularity enables ease of removal of reconfiguring Belden's wide selection of accessories and components, Interchangeable cable retention gates, doors, fingers and accessories adapt to specific needs

Features

Available in high or low density, finger sections can be easily removed during reconfigurations and easily replaced as needed., High-density 11RU sections are riveted into the vertical managers and align with the rack units, Designed to handle both copper and optical fiber structured cable networks, 1/4" diameter mounting holes along length of each vertical manager enable easy attachment of accessories, like cable bundle fasteners, Cable can be easily routed from one patch panel to another within the same rack, to the back of the rack or to an adjacent rack while still maintaining proper cable bend radius.

Environmental Space

Indoor
Construction and Dimensions

Rack Units

45U

Depth

18.54 in
Mechanical Characteristics

Mounting

Vertical

Environmental and Overall Characteristics

Finish

Black Powdercoat

Material

6063-T6 Aluminum & Black Plastic

Color

Black

Related Part Numbers

Included Parts

Mounting Hardware

Packaging

Individually Boxed

Update and Revision

Revision Number: 0.250 Revision Date: 11-09-2022

Show All Specifications
Hide Specifications
Part Numbers
Part # Height Width Depth Weight
BHVHL03 79.63 in 3.6 in 18.54 in 42.0 lb
BHVHL06 79.63 in 6.0 in 18.54 in 44.0 lb
BHVHL10 79.63 in 10.0 in 18.54 in 50.0 lb
BHVHL12 79.63 in 12.0 in 18.54 in 54.0 lb
