CABLE MAN VERT SINGLE E-SERIES

EDAV1xx2-Series

...

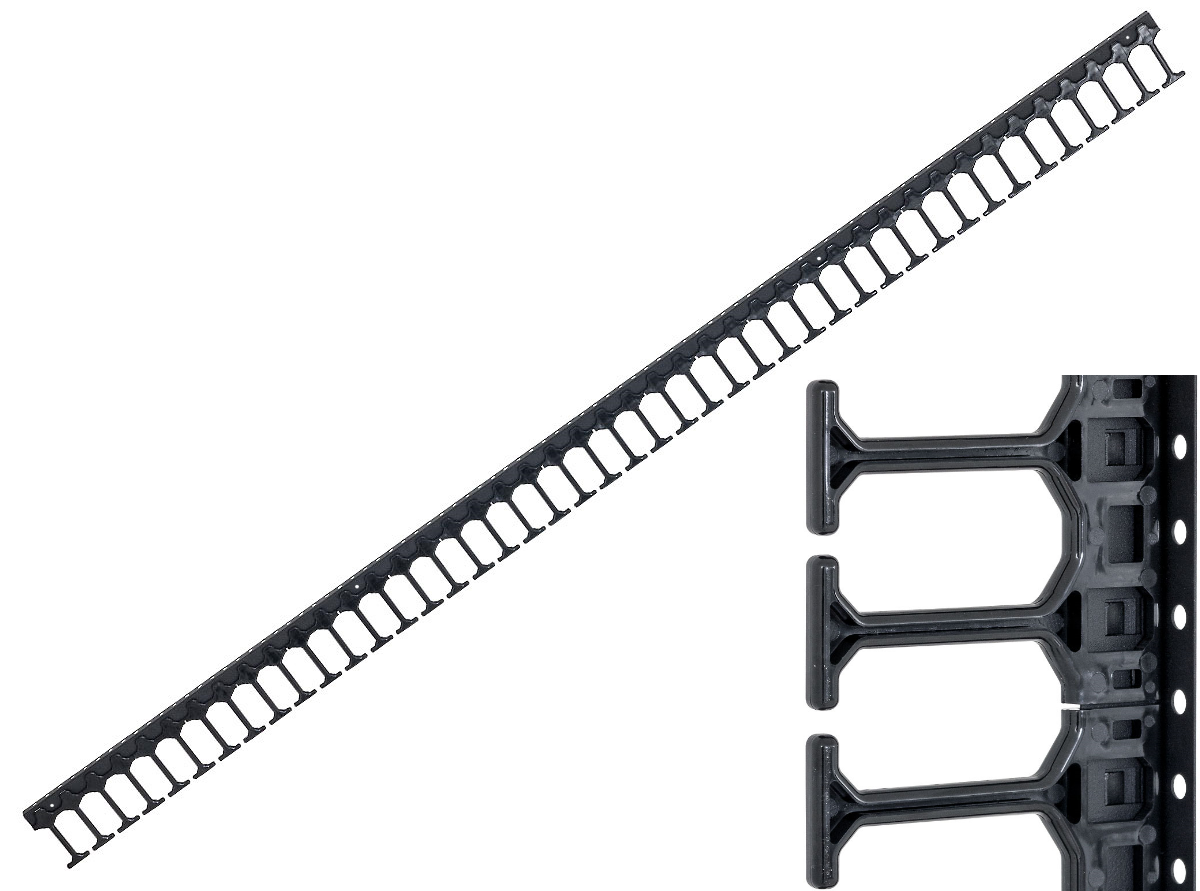

Vertical Cable Management Single finger strip for E-Series.

Regions Available: EMEA
English
Request Quote
Share
Get Product Alerts

Specifications
Report An Error
Application

Environmental Space

Indoor
Construction and Dimensions

Width

20 mm

Depth

105 mm
Environmental and Overall Characteristics

Material

Metal and plastic moulded fingers on one side

Color

Black

Standards

EU Directive 2011/65/EU (RoHS 2)

Yes

MII Order #39 (China RoHS)

EUP 50

Related Part Numbers

Included Parts

cable manager and bolts for installation

Packaging

Individually packaged

Update and Revision

Revision Number: 0.77 Revision Date: 04-19-2022

Show All Specifications
Hide Specifications
Part Numbers
Part # Height Depth EDC / ESN / ESH Application Min. cabinet size
EDAV1152 531 mm 105 mm 15U
EDAV1182 620 mm 105 mm 18U
EDAV1222 884 mm 105 mm 22U
EDAV1272 1062 mm 105 mm 27U
EDAV1322 1240 mm 105 mm 32U
EDAV1372 1504 mm 105 mm 37U
EDAV1422 1681 mm 105 mm 42U
EDAV1452 1858 mm 105 mm 45U
EDAV1472 1954 mm 105 mm 47U
