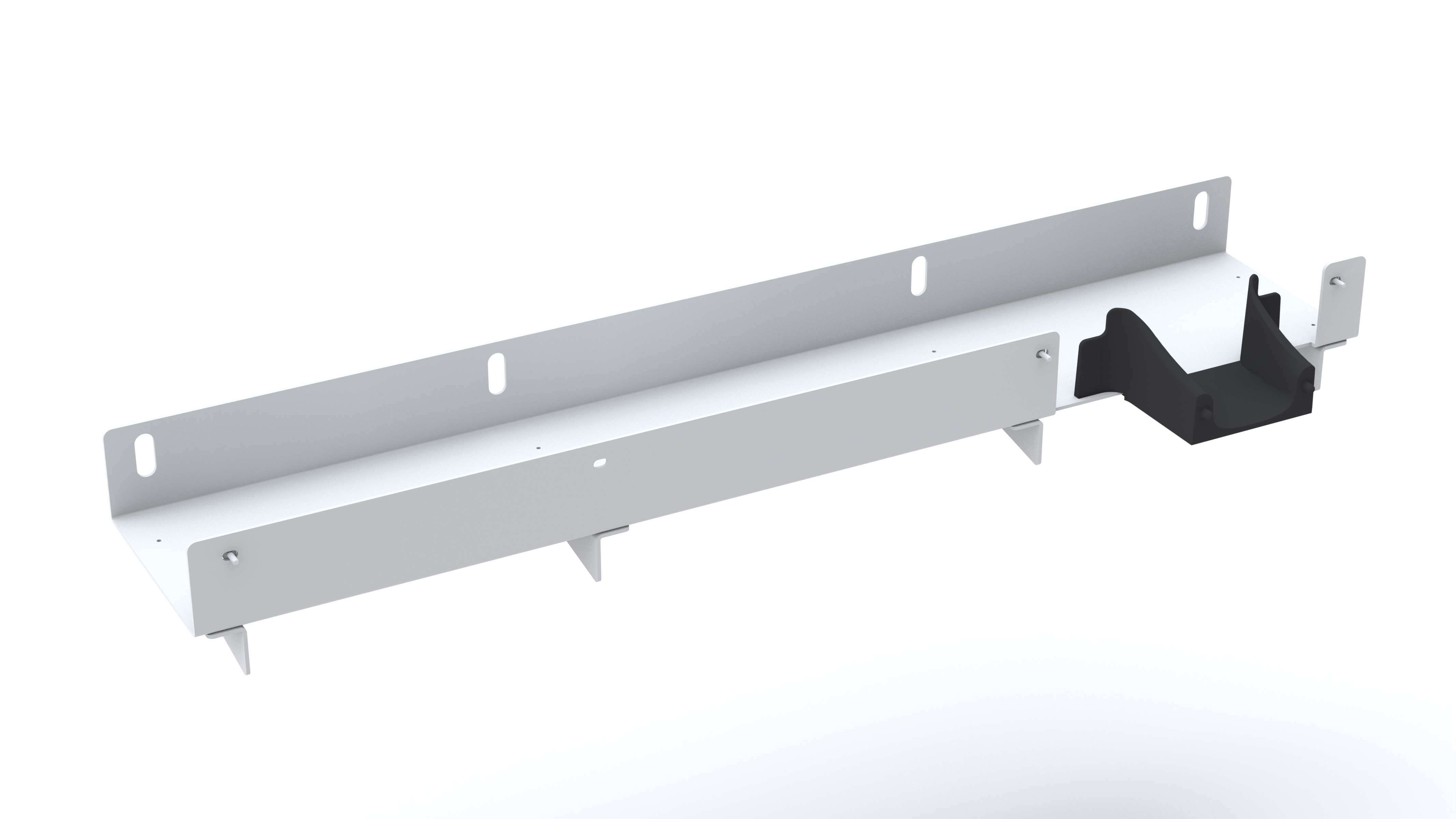

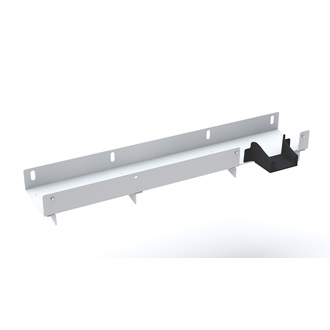

DCX-HRRC-LR01W

DCX Rear Channel Kit LR

...
DCX Horizontal Rear Channel Kit, Left-Right (4 Patch Cord Trays), Central Office White
English
Request Quote
Share
Get Product Alerts

Specifications
Report An Error
Product Overview

Environmental Space

Indoor

Suitable Applications

Optical Distribution Frame, Data Centers, Central Equipment Room

Construction

Weight

10.060 lbs

Height

5.560 in

Width

36.000 in

Depth

10.000 in
Physical Specifications

Max Capacity

4172 fibers (1.6mm cables), 2086 fibers (1.6mm DX/ZIP cables), 1335 fibers (2mm cables)

Mechanical Characteristics
Mechanical Tests
Description
Temperature Range

Operating Temperature Range

-10°C To +60°C

Storage Temperature Range

-10°C To +75°C

Product Material
Materials
Description Material Color
Horizontal Rear Channel LR Steel White
Frame Spool Rear through Management PC/ABS Black
Standards

MII Order #39 (China RoHS)

EUP 50

Related Part Numbers

Included Parts

Hardware kit, see notes

Related Parts

DCX Frame Module & Patch Panel

Product Notes

Packaging

The kit (4x) is packaged in a cardboard box

Notes

Hardwar kit contains: Thread Cutting Screws 10-32 (2x), Quick Start Guides (2x). For more information, refer to Quick Start Guide PX106860 (English/French) or visit our web site at http://www.belden.com/dcx

History

Update and Revision

Revision Number: 0.39 Revision Date: 05-31-2024

Show All Specifications
Hide Specifications
Part Numbers
Item # Color
DCX-HRRC-LR01W White
