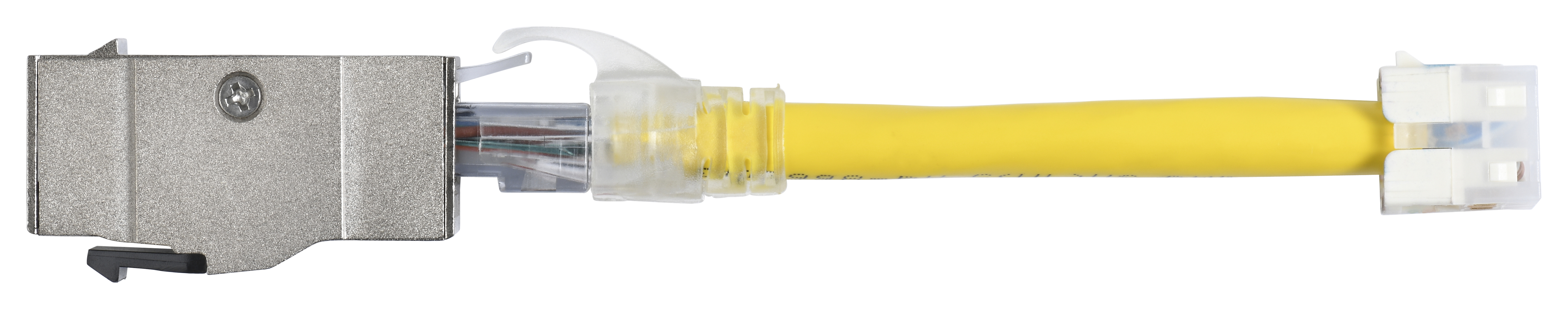

RVUTA01

REVConnect Coupler Test Adapter Kit

REVConnect Coupler Test Adapter Kit

Regions Available: Global

Request Quote

Share

Get Product Alerts

Specifications

Report An Error

Suitable Applications	REVConnect system testing. For use in permanent link testing.

Wiring Scheme	T568A/B
Packaging	Individually packaged in a clear plastic bag.

Dielectric Strength	1,000 V RMS @ 60 Hz
Current Rating	1.500 A
Insulation Resistance	500 M-Ohm Minimum
Max Contact Resistance	20 mOhm

Installation Temperature Range	-10°C To +60°C
Storage Temperature Range	-40°C To +70°C
Operating Temperature Range	-20°C To +60°C

Plug /Jack Compatibility	RJ45, REVConnect Core

Termination	Connection	Durabilities
Cable End 1 - RJ45	Mated Connection	1000 Cycles
Cable End 2 - REVConnect	Mated Connection	1000 Cycles
RJ45	Mated Connection

TIA/EIA Compliance	Category 6A - ANSI/TIA 568.2-D, Category 6A - ISO/IEC 11801-1

EU Directive 2002/95/EC (RoHS)	Yes
EU Directive 2011/65/EU (RoHS 2)	Yes

Suitability - Indoor	Yes
Suitability - Oil Resistance	No
Suitability - Outdoor	No
Suitability - Sunlight Resistance	No

Related Parts	RVUTA21, RVUTA22, RVUTA02

Included Parts	RVUTA02, AX104552

Update and Revision	Revision Number: 0.14 Revision Date: 05-31-2024
