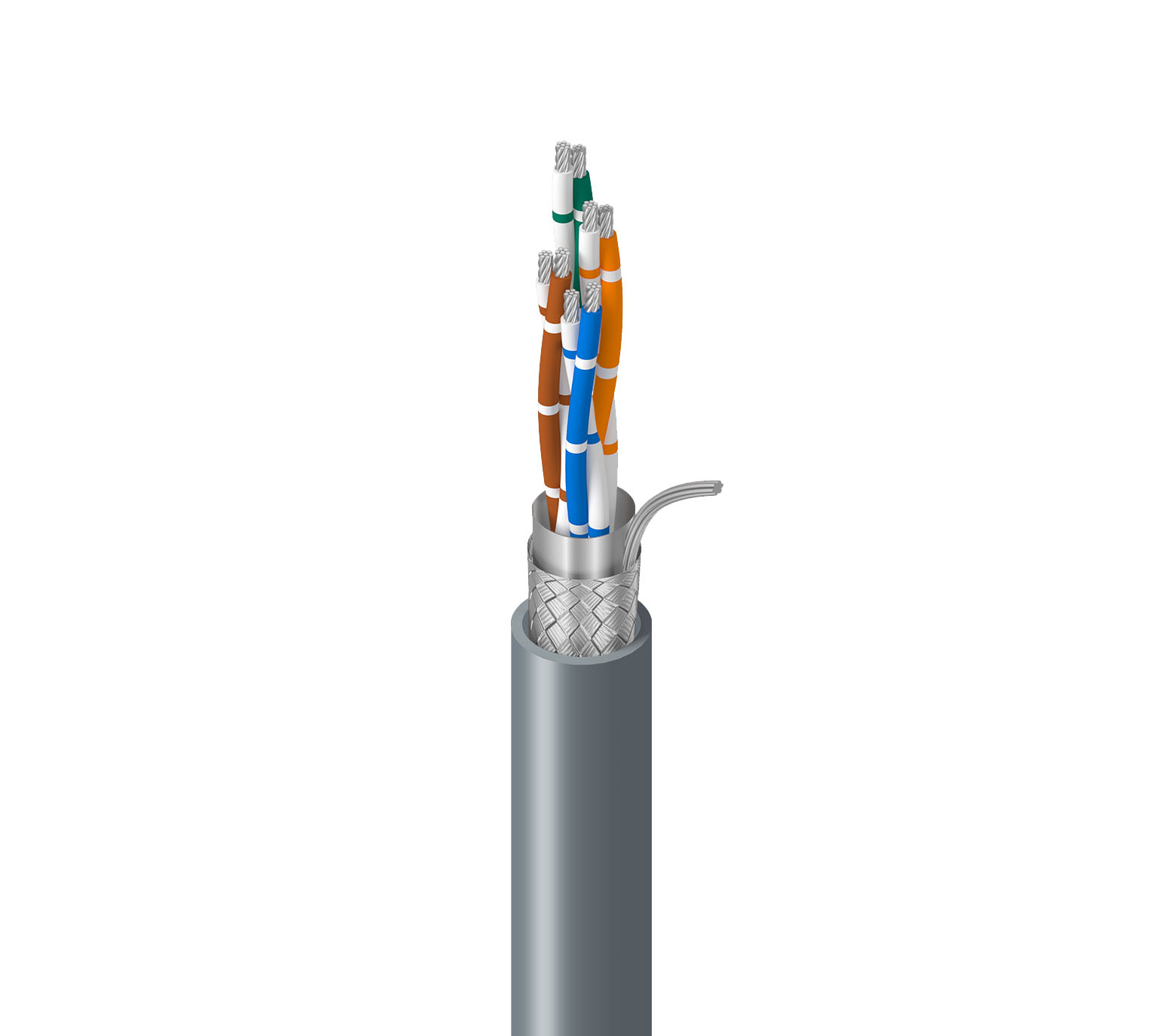

9844LW

RS485, 4 Pr #24 Str TC, PE Ins, OS+TC Brd, LSZH Jkt, Cca

...
4-Pair, 24 AWG stranded (7x32) TC conductors, polyethylene insulation, twisted pairs, overall Beldfoil® (100% coverage) + TC braid shield (90% coverage), 24 AWG stranded TC drain wire, LSZH jacket, Flame resistance IEC 60332-1-2, CPR Cca

Regions Available: Global
Life Cycle Status: Capability
English
Request Quote
Share
Get Product Alerts

Specifications
Report An Error
Product Overview

Suitable Applications

RS-485, POS; Computer communications; Low Voltage Analog Signals (4-20ma, 0-10v, ...); Low Voltage Digital Control (24v, …); Line Level Audio; Panel Wiring; serial communication (RS-485 standard) comprising of PLCs, VFDs, HMIs, motors, RTU, SCADA, etc. within noisy environments over long distance, etc.

Physical Characteristics (Overall)
Conductor
AWG Stranding Material No. of Pairs
24 7x32 TC - Tinned Copper 4

Conductor Count

8

Total Number of Pairs

4

Insulation
Material Nominal Diameter Diameter +/- Tolerance
PE - Polyethylene 1.73 mm 0.05 mm
Color Chart
Number Color
Pair 1 White/Blue & Blue/White
Pair 2 White/Orange & Orange/White
Pair 3 White/Green & Green/White
Pair 4 White/Brown & Brown/White
Outer Shield
Type Material Material Trade Name Coverage [%] Thickness of Foil Drainwire Material Drainwire AWG
Tape Bi-Laminate (Alum+Poly) Beldfoil® (Z-Fold®) 90% 9 / 23 µm TC - Tinned Copper AWG24/7
Braid Tinned Copper (TC) 90%
Outer Jacket
Material Nominal Diameter Nominal Wall Thickness
LSZH - Low Smoke Zero Halogen (Flame Retardant) 9.9 mm 0.9 mm
Construction and Dimensions
Cabling
Description
4 pairs twisted to cable core
Electrical Characteristics
Conductor DCR
Nominal Conductor DCR Nominal Outer Shield DCR
78.7 Ohm/km 6.9 Ohm/km
Capacitance
Nom. Capacitance Conductor to Conductor Nom. Capacitance Conductor to Other Conductor to Shield
42 pF/m 75.5 pF/m
Impedance
Frequency [MHz] Nominal Characteristic Impedance
1 MHz 120 Ohm
High Frequency (Nominal/Typical)
Frequency [MHz] Nom. Insertion Loss
1 MHz 1.97 dB/100m
Delay
Nominal Delay Nominal Velocity of Propagation (VP) [%]
520 ns/ft 66%
Current
Element Max. Recommended Current [A]
Conductor(s) 2.1 Amps per Conductor
Voltage
Voltage Rating [V]
300 V
Temperature Range

Installation Temperature Range

-15°C To +80°C

Storage Temperature Range

-45°C To +80°C

Operating Temp Range (Flexible Install)

-15°C To +80°C

Operating Temp Range (Fixed Install)

-45°C To +80°C

Mechanical Characteristics

Oil Resistance

IEC 60811-404

Max. Pull Tension

500 N

Min. Bend Radius During Installation

99 mm
Standards

CENELEC Compliance

EN 50290-2-20
Applicable Environmental and Other Programs

Environmental Space

Indoor - Euroclass Cca
Suitability

Suitability - Indoor

Yes

Suitability - Non-Halogenated

Yes

Suitability - Oil Resistance

Yes

Suitability - Sunlight Resistance

Yes

Flammability, LS0H, Toxicity Testing

IEC Flammability

IEC 60332-1-2

IEC 60754-1 - Halogen Amount

Zero

IEC 60754-2 - Halogen Acid Gas Amount - Max. Conductivity

2.5 µS/mm

IEC 60754-2 - Halogen Acid Gas Amount - Min. pH

4.3

IEC 61034-2 - Smoke Density Min. Transmittance

60%

Product Notes

Notes

This is a preliminary Technical Design Specification (TDS) which is subject to modification throughout the prototyping phase. The minimum business quantity to offer is 3km for the first order. This product will have Chrome as standard color and 305mt or 500mt as standard put-ups. Additional options for colors and put-ups are available on special request. The estimated production lead time for the first order will be similar to the production lead time of 9844NH plus extra 6-7 weeks. Please liaise with your Belden representative for confirmation.

History

Update and Revision

Revision Number: 0.9 Revision Date: 11-13-2024
