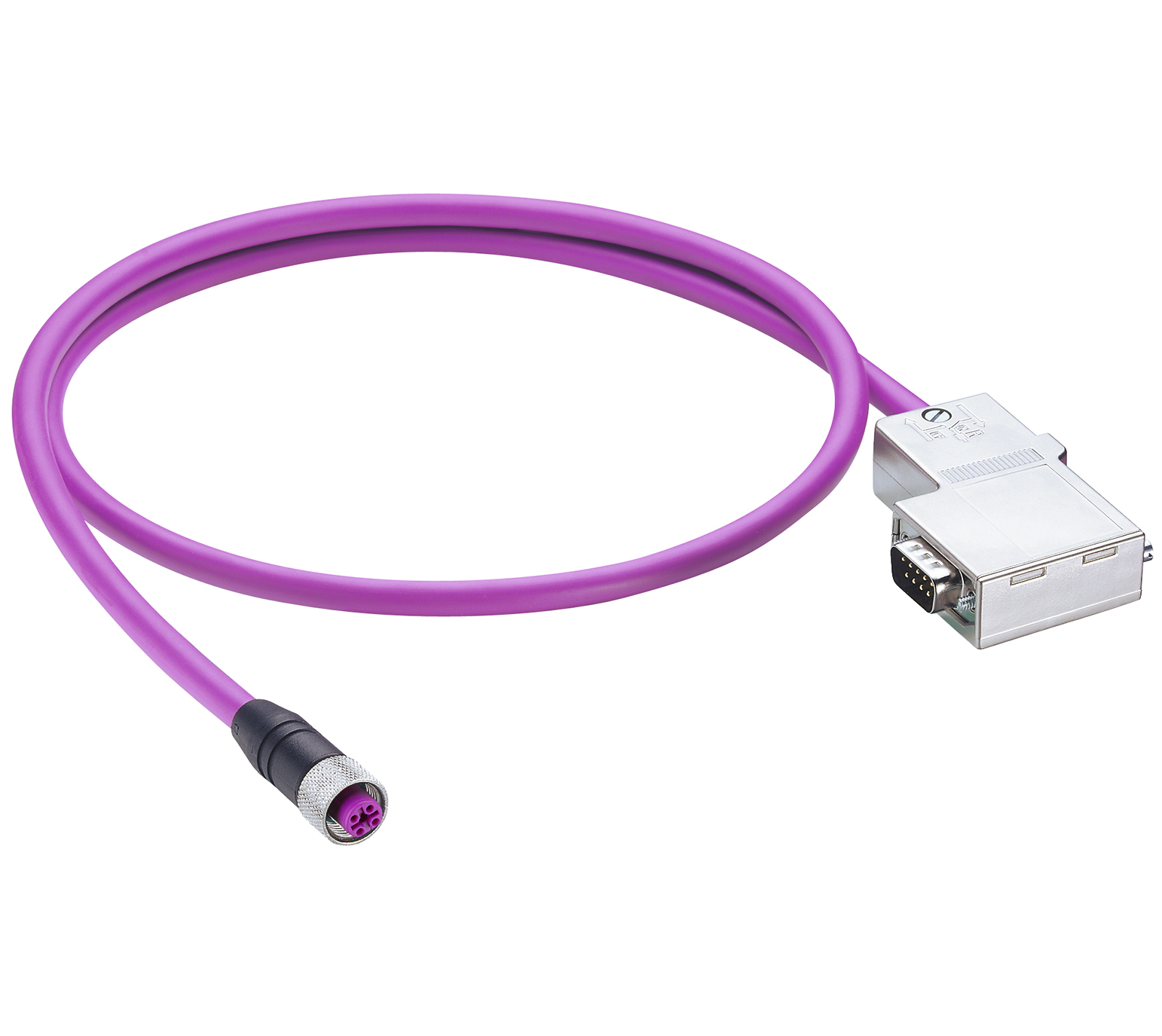

PROFIBUS Data Double-Ended Cordset: Male angled SUB-D-coded SUB-D to female straight B-coded black M12 Standard, shielded, + 4.75 … +5.25 V DC, 12.5 mA; PUR violet cable, 2-wires, 0.34 mm²

Request Quote

Get Product Alerts

Specifications

Report An Error

Pin 1	Pin 2	Pin 3	Pin 4	Pin 5	Pin 6	Pin 7	Pin 8	Pin 9
n.c.	n.c.	green	n.c.	n.c.	n.c.	n.c.	red	n.c.

Pin 1	Pin 2	Pin 3	Pin 4	Pin 5
n.c.	green	n.c.	red	n.c.

Product Sub Family	SUB-D
Type of Contact / Gender	Male
Connector Design	Angled
Number of Pins	9
Coding	SUB-D
Contact Resistance	≤ 20 mOhm
Ambient Temperature (Operation)*	0 °C - + 60 °C
Protection Degree / IP Rating**	IP40
Overvoltage Category	I acc. to DIN EN 60664-1 (VDE 0110-1)
Contact Base Material	CuZn
Contact Plating	Cu/Au
Contact Bearer Material	PA
Contact Bearer Color	Black
Flammability Class (Contact Bearer)	UL 94 V-0
Molded Body Material	ABS, nickel-plated
Molded Body Color	Nickel
Note	Do not connect or disconnect under load.

Cable Number	254
Conductor Size	0.34 mm²
Number of Wires	2
Minimal Bending Radius (Fixed Inst)	˃ 5 x D
Minimal Bending Radius (Flexible Inst)	˃ 10 x D
Cycles (Bending)	˃ 1 M
Conductor material	Cu
Cable Jacket Material	PUR
Cable Jacket Color	violet matt similarly RAL 4001
Cable Diameter D	ø 7.60 ± 0.30 mm
Wire Insulation Material	PE
Insulated Wire Diameter	ø 2.60 ± 0.05 mm
Overall Shield (Cable)	Cu-ETP1 tinned
Foil shield	Al-PT Foil
Ambient Temperature (Fixed Installation)	- 50 °C - + 80 °C
Ambient Temperature (Flex Installation)	- 25 °C - + 80 °C
Ambient Temperature (Drag Chain Inst)	- 25 °C - + 60 °C
UL Cable Type	AWM: 20549
Flammability Class (Cable Jacket)	DIN EN 60332-2-2, VDE 0482-332-2-2, IEC 60332-2-2, CSA FT-2, flame-retardant
Cable Characteristics	Exclusion of dangerous materials; Line fulfills the transmission values RS485 (Type A) of the PROFIBUS user organization; Free of lacquer wetting disturbing substances; Good microbes and hydrolysis resistance Mainly plasticizer diffusion free; Good chemical and oil resistance; Exclusion of PVC and Silicone; Coldness flexibility
Core Colors	red, green

Product Sub Family, Side 2	M12 Standard
Type of Contact / Gender, Side 2	Female
Connector Design, Side 2	Straight
Attachment Type, Side 2	Coupling Nut
Number of Pins, Side 2	5
Coding, Side 2	B
Contact Resistance, Side 2	≤ 10 mOhm
Insulation Resistance, Side 2	˃ 10^9 Ohm
Mating Cycles, Side 2	≤ 100
Ambient Temperature (Operation), Side 2*	- 25 °C - + 80 °C
Protection Degree / IP Rating, Side 2**	IP65, IP67
Design Standard, Side 2	IEC 61076-2-101
Pollution Degree, Side 2	3 acc. to DIN EN 60664-1 (VDE 0110-1)
Overvoltage Category, Side 2	I acc. to DIN EN 60664-1 (VDE 0110-1)
Contact Base Material, Side 2	CuZn
Contact Plating, Side 2	Cu/Au
Contact Bearer Material, Side 2	TPU
Contact Bearer Color, Side 2	Violett
Flammability Class (Contact Bearer), Side 2	UL 94 HB
Molded Body Material, Side 2	TPU
Molded Body Color, Side 2	Black
Flammability Class (Molded Body), Side 2	UL 94 HB
Attachment Material, Side 2	CuZn
Attachment Plating, Side 2	Nickel-plated
Shielding Material, Side 2	CuZn, tin-plated
Fastening Torque (Attachment), Side 2	M 12x1: (50-60) Ncm, hand-tight

RoHS Compliant	yes

Halogenfree	DIN EN 50267-2-1, IEC 60754-1, VDE 0482-267-2-1

Protection Degree / IP Rating Note	** only if mounted and locked in combination with Hirschmann / Lumberg Automation connector.
Note Derating	Notice derating

Update and Revision	Revision Number: 0.55 Revision Date: 01-19-2023
