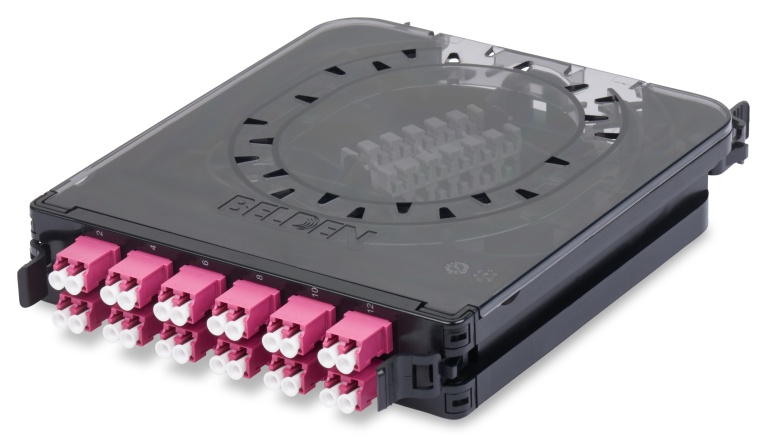

FC4X12LDFP

FX ECX CASS OM4 12P W/250-PT LC_DX EV_ADP

FX ECX CASSETTE, OM4, 12 PORTS, WITH 250um PIGTAILS, LC DUPLEX, ERIKA VIOLET ADAPTERS

Regions Available: Global

Request Quote

Specifications

Report An Error

Environmental Space	Indoor
Suitable Applications	FiberExpress Solutions, Backbone, Telecommunications Room, Main Distribution Room, Data Centers

Fiber Type
OM4

Max Capacity	24 Fibers

Description

Front Connection	Static

Operating Temperature Range	-10°C To +60°C
Storage Temperature Range	-10°C To +75°C

Description	Material	Color	Type
Adapter Sleeve	Zirconia-Ceramic
Front Connector Body	Plastic - UL94V-0	Erika Violet	LC Duplex
Cassette Assembly	Plastic - UL94V-0	Black

Connector Type	Max. Insertion Loss	Min. Return Loss
LC Duplex	0.15 dB	-25 dB

MII Order #39 (China RoHS)	EUP 50

Included Parts	250μm color coded pigtails, slim splice protection sleeve, rubber strip, and cable ties
Related Parts	FX ECX Panels, Belden Splice Sleeves (see notes)

Packaging	Individually packaged in a plastic shell, shipped in cardboard box (12/box)
Notes	Splice holder is included. Splice holder compatible with Belden splice sleeves part numbers (Post-Shrink Diameter): FXFUHS900AB25(2.5mm), FXFUHS9T2CB25 (2.0mm), FXFUHS250DB25 (1.5mm), and FXFUHSRIBEB12 (oval 4.1mm x 4.6mm). For additional information about this product, please contact our Technical Support group (ibdn.ts@belden.com) or your local sales representative.

Update and Revision	Revision Number: 0.26 Revision Date: 11-08-2024
