FF4X12LD

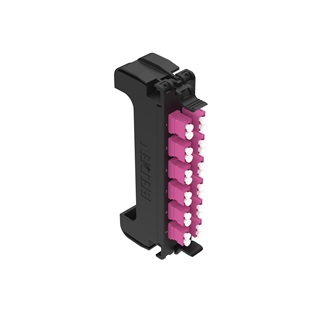

FX ECX FRAME, OM4, 12 PORTS, LC DUPLEX

...
FX ECX FRAME, OM4, 12 PORTS, LC DUPLEX, ERIKA VIOLET ADAPTERS

Regions Available: Global
English
Request Quote
Share
Get Product Alerts

Specifications
Report An Error
Product Overview

Environmental Space

Indoor

Suitable Applications

FiberExpress Solutions, Backbone, Telecommunications Room, Main Distribution Room, Data Centers

Construction
Fiber Cable Construction
Fiber Type
OM4

Weight

0.2

Height

1.3

Width

6.34

Length

2.890 in

Depth

1.47 in
Physical Specifications

Max Capacity

24 Fibers, 12 LC Duplex Ports

Inner Jacket

Inner Jacket

Inner Jacket

Mechanical Characteristics
Mechanical Tests
Description

Front Connection

Static

Temperature Range

Operating Temperature Range

-10 to 60°C

Storage Temperature Range

-10 to 75°C

Product Material
Materials
Description Material Color Type
Adapter Sleve Zirconia-Ceramic Black
Front Connector Body Plastic - UL94V-0 Erika Violet LC-Duplex
Frame Plastic - UL94V-0 Black
Frame Brace Support Plastic - UL94V-0 Black
Standards

MII Order #39 (China RoHS)

EUP 50

Related Part Numbers

Included Parts

Dust Caps

Related Parts

FX ECX Panels, FX Pigtails, FX Brilliance

Product Notes

Packaging

Individually packaged in a plastic shell, Shipped in cardboard box (12/box)

Notes

For additional information about this product, please contact our Technical Support group (ibdn.ts@belden.com) or your local sales representative.

History

Update and Revision

Revision Number: 0.212 Revision Date: 11-29-2024

Show All Specifications
Hide Specifications
Part Numbers
Item # Color Connector Type Port Count
FF4X12LD Erika Violet LC Duplex 12 Port
