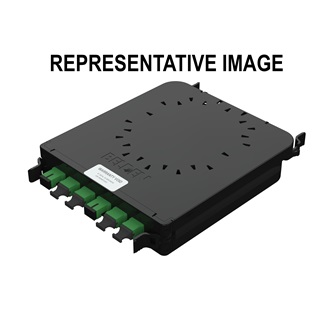

SCSX2116SMF

FX ECX Splitter Cassette, OS2, 1 X 16

...
FX ECX Splitter Cassette, OS2, 1 X 16, 2 Splitters, SC/APC Input, MPO/APC Output, Front
English
Request Quote
Share
Get Product Alerts

Specifications
Report An Error
Product Overview

Suitable Applications

FiberExpress Solutions, Backbone, Telecommunications Room, Main Distribution Room, Passive Optical LAN

Construction
Fiber Cable Construction
Fiber Type
OS2

Weight

.600 lbs

Height

1.30 in

Width

6.34 in

Length

8.70 in
Physical Specifications

Max Capacity

32 Fibers (Output)

Mechanical Characteristics
Mechanical Tests
Description

Front Connection

Static

Termination Style

Front

Temperature Range

Operating Temperature Range

-10°C To +60°C

Storage Temperature Range

-10°C To +60°C

Product Material
Materials
Description Material Color Type
Housing PC/ABS Black
Cover Polycarbonate Clear-Light Smoke
Adapter Output Plastic - UL94V-0 Green MPO Adapter
Adapter Input Plastic - UL94V-0 Green SC-Simplex/APC
Transmission Specifications
Splitter Configuration IL Max (dB) Uniformity Max (dB) PDL Max (dB) Directivity Min (dB) RL Min (dB)
1 x 16 14.000 1.200 0.300 55 55
Standards

TIA/EIA Compliance

Telcordia GR-1209-CORE (splitters only), Telcordia GR-1221-CORE (splitters only)

MII Order #39 (China RoHS)

EUP 50

Related Part Numbers

Related Parts

FX ECX Housings (4U, 2U, 1U), ECX Splice Cassettes, Patch Cords

Product Notes

Packaging

Individually packaged in a plastic shell, Shipped in cardboard box (12/box)

History

Update and Revision

Revision Number: 0.25 Revision Date: 03-05-2024
