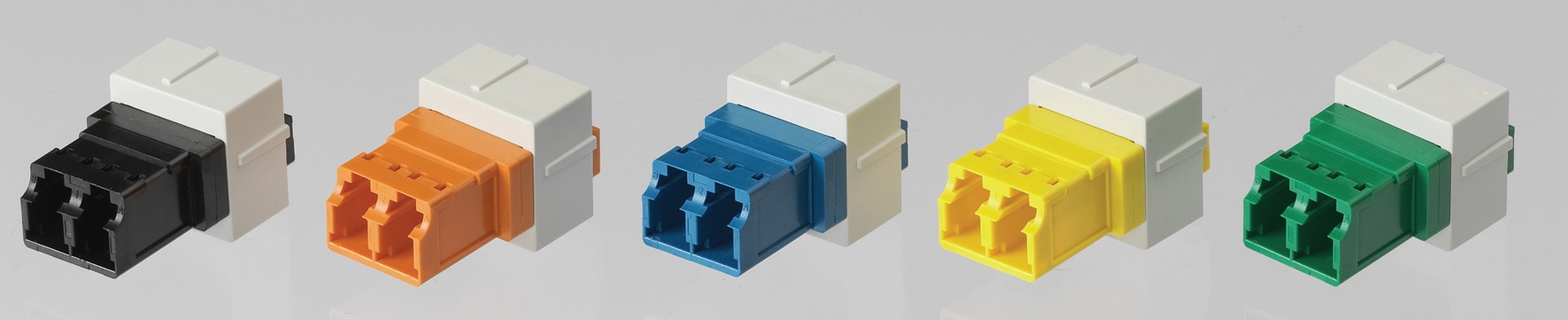

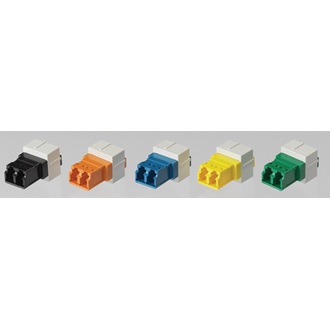

MDVO LC Keyed Duplex Multimode Adapter
|
Environmental Space |
Indoor |
|---|---|
|
Suitable Applications |
Secured applications over fiber optic |
|
Weight |
0.01 kg |
|---|---|
|
Height |
0.63 m |
|
Width |
0.63 |
|
Depth |
1.14 |
| Description |
|---|
|
Footprint/Type |
MDVO |
|---|
|
Operating Temperature Range |
-10 to 60°C |
|---|---|
|
Storage Temperature Range |
-40 to 70°C |
| Description | Material | Type |
|---|---|---|
| Front Connection | Plastic - UL94V-0 | LC Keyed |
| Rear Connection | Plastic - UL94V-0 | LC Keyed |
| Insert | Plastic - UL94V-0 | MDVO |
|
Safety Listing |
Bi-national Standard Listed |
|---|
|
Related Parts |
Compatible MDVO Faceplate and Patch Panel |
|---|
|
Packaging |
10 Modules packaged in a suitable plastic bag. |
|---|
|
Update and Revision |
Revision Number: 0.62 Revision Date: 11-09-2022 |
|---|
| Item # | Color | Port Count | Adapter Color |
|---|---|---|---|
| AX102095 | Almond | 1 Port | Red |
| AX102096 | Almond | 1 Port | Green |
| AX102097 | Almond | 1 Port | Yellow |
| AX102098 | Almond | 1 Port | Black |
| AX102099 | Almond | 1 Port | Orange |
| AX102100 | Almond | 1 Port | Blue |
| AX102104 | Black | 1 Port | Black |
| AX102107 | Black | 1 Port | Red |
| AX102108 | Black | 1 Port | Green |
| AX102109 | Black | 1 Port | Yellow |
| AX102110 | Black | 1 Port | Black |
| AX102111 | Black | 1 Port | Orange |
| AX102112 | Black | 1 Port | Blue |
| AX102089 | Gray | 1 Port | Red |
| AX102090 | Gray | 1 Port | Green |
| AX102091 | Gray | 1 Port | Yellow |
| AX102092 | Gray | 1 Port | Black |
| AX102093 | Gray | 1 Port | Orange |
| AX102094 | Gray | 1 Port | Blue |
| AX102101 | Red | 1 Port | Red |
| AX102102 | White | 1 Port | Green |
| AX102103 | White | 1 Port | Yellow |
| AX102105 | White | 1 Port | Orange |
| AX102106 | White | 1 Port | Blue |
