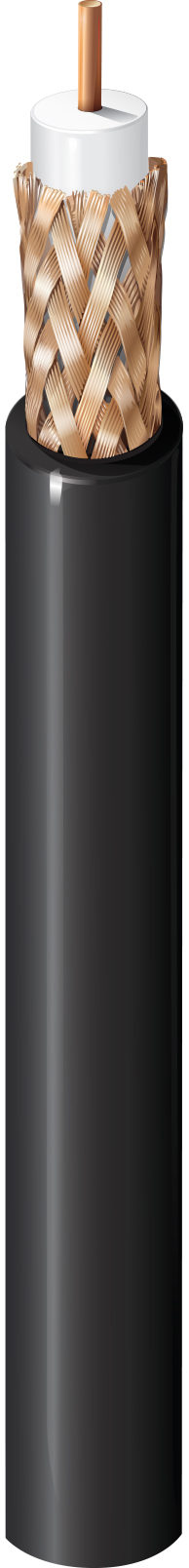

433945

Surveillance CCTV, RG-6 #18 Sol BC, FPE Core, BC Braid, LSZH Jkt

...
Surveillance, CCTV, RG-6, 18 AWG solid bare copper, foam PE core, 92% bare copper braid, LSZH jacket
English
Request Quote
Share
Get Product Alerts

Specifications
Report An Error
Product Overview

Suitable Applications

Coaxial cable used in analogue video and CCTV communication networks designed according European Standard EN 50117-1; Operating at frequencies between 5 and 1000 MHz

Construction Details

RG Type

6

Conductor
No. of Elements Size Stranding Nom. Diameter Material
1 18 AWG Solid 1.02 mm BC - Bare Copper
Insulation
Material Nom. Insulation Diameter
PE - Polyethylene (Foam) 4.57 mm (0.180 in)
Outer Shield
Outer Shield Type Material Coverage
Braid Bare Copper (BC) 95%
Outer Jacket
Material Nom. Diameter
LSZH - Low Smoke Zero Halogen (Flame Retardant) 6.75 mm
Electrical Characteristics
Attenuation
Frequency Nom. Attenuation
1 MHz 0.78 dB/100m
10 MHz 2.1 dB/100m
50 MHz 4.92 dB/100m
100 MHz 6.56 dB/100m
200 MHz 9.51 dB/100m
400 MHz 13.8 dB/100m
700 MHz 18.4 dB/100m
900 MHz 21 dB/100m
1000 MHz 23 dB/100m
Electricals
Nom. Conductor DCR Nom. Outer Shield DCR Nom. Capacitance Cond-to-Shield Nom. Characteristic Impedance Nom. Velocity of Prop.
21 Ohm/km 16.4 Ohm/km (5.00 Ohm/1000ft) 53.4 pF/m (16.3 pF/ft) 75 Ohm 83%
Voltage
Voltage Rating
300 V RMS
Mechanical Characteristics
Temperature
Operating Storage
-30°C To +70°C -30°C To +70°C
Bend Radius
Stationary Min. Installation Min.
33.75 mm (1.329 in) 67.5 mm

Max. Pull Tension

30 N (6.7 lbf)

Bulk Cable Weight

52 kg/km

Standards and Compliance

Environmental Suitability

Indoor - Euroclass Eca

Flammability / Reaction to Fire

IEC 60332-1-2

CPR Compliance

CPR Euroclass: Eca

European Halogen Free Standards

IEC 62821-1 Halogen Free Compliance = Yes, IEC 60754-1 - Halogen Amount = Zero, IEC 60754-2 - Halogen Acid Gas Amount - Max. Conductivity = 2.5 µS/mm, IEC 60754-2 - Halogen Acid Gas Amount - Min. pH = 4.3

UK Regulation Compliance

UKCA Mark

History

Update and Revision

Revision Number: 0.255 Revision Date: 06-28-2024

Show All Specifications
Hide Specifications
Part Numbers
Item # Color Putup Type Length EAN
433945.01500 Black Reel 500 m 8719605127570
433945.00100 Gray Reel 100 m 8719605006790
433945.00500 Gray Reel 500 m 8719605006806
