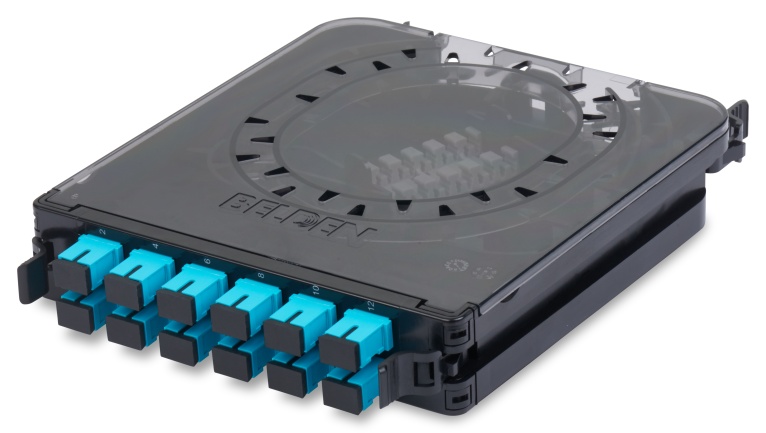

Product Number: FX ECX Cassette OM3 12P Splice
FX ECX Splice Cassette OM3 12 Ports
FX ECX Splice Cassette OM3 12 Ports (12-24 fibers).
-
Availability:
Global
-
Global inventory:
Available
Specifications
Product Overview
|
Environmental Space |
Indoor |
|---|---|
|
Suitable Applications |
FiberExpress Solutions, Backbone, Telecommunications Room, Main Distribution Room, Data Centers |
Construction
Fiber Cable Construction
| Fiber Type |
|---|
| OM3 |
|
Weight |
0.6 lbs |
|---|---|
|
Height |
1.3 m |
|
Width |
6.34 |
|
Length |
8.74 ft |
Mechanical Characteristics
Mechanical Tests
| Description |
|---|
|
Front Connection |
Static |
|---|
Temperature Range
|
Operating Temperature Range |
-10 to 60°C |
|---|---|
|
Storage Temperature Range |
-10 to 75°C |
Product Material
Materials
| Element | Description | Material | Color |
|---|---|---|---|
| Zirconia-Ceramic | Adapter Sleve Material | Zirconia-Ceramic | |
| Plastic - UL94V-0 | Front Connector Body | Plastic - UL94V-0 | Aqua |
| Plastic - UL94V-0 | Cassette Assembly | Plastic - UL94V-0 | Black |
Standards
|
MII Order #39 (China RoHS) |
EUP 50 |
|---|
Related Part Numbers
|
Related Parts |
FX ECX panels, FX Pigtails, FX Brilliance |
|---|
Product Notes
|
Packaging |
Individually packaged in a plastic shell, Shipped in cardboard box (12/box) |
|---|
History
|
Update and Revision |
Revision Number: 0.62 Revision Date: 05-31-2024 |
|---|
