8723SB

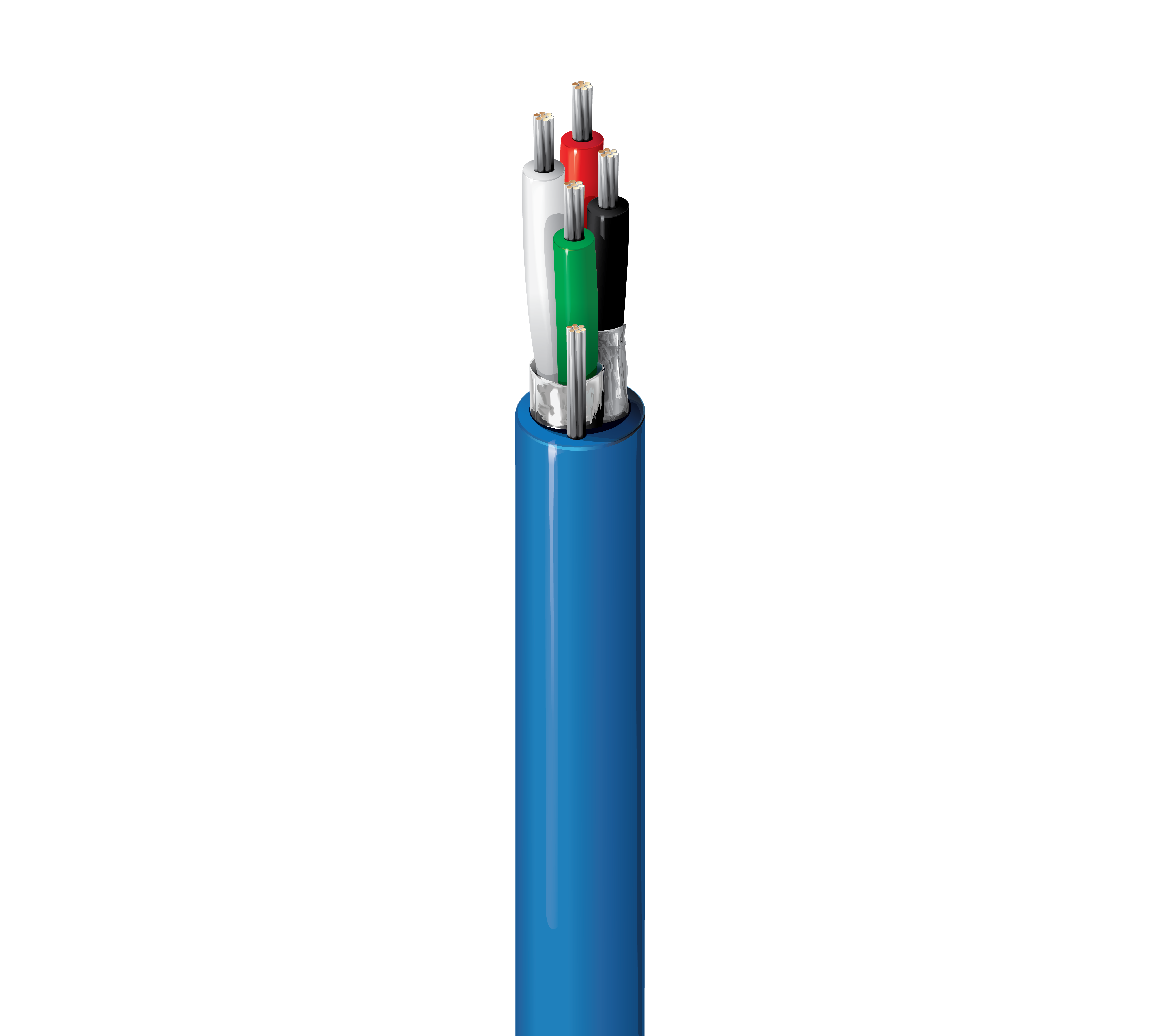

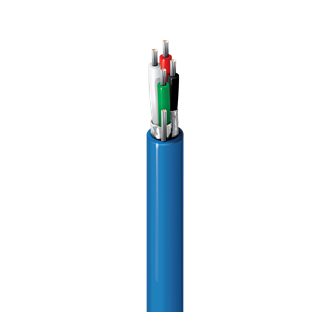

Audio & Instrumentation, 2 Pair 22 AWG, TC, Individually Shielded, Shipboard

...
Audio & Instrumentation, 22 AWG stranded (7x30) tinned copper conductors, twisted pairs, polypropylene insulation, individually shielded with 100% Beldfoil® shield (100% coverage), 24 AWG stranded tinned copper drain wire, LSZH jacket.
English
Request Quote
Share
Get Product Alerts

Specifications
Report An Error
Product Overview

Suitable Applications

shipboard applications; low voltage analog signals (4-20ma, 0-10v, ...); low voltage digital control (24v, …); line level audio; panel wiring

Construction Details
Conductor
Element No. of Elements Size Stranding Material
Pair(s) 2 22 AWG 7x30 TC - Tinned Copper
Insulation
Element Material Nom. Thickness Nom. Insulation Diameter Color Code
Pair(s) PP - Polypropylene 0.009 in (0.23 mm) 0.046 in (1.2 mm) Black & Red, Green & White
Inner Shield
Element Shield Type Material Coverage Drainwire Type Notes
Pair(s) Tape Bi-Laminate (Alum+Poly) 100% 24 AWG (7x32) TC foil-out tape on each pair, one drain wire
Outer Jacket
Material Nom. Thickness Nom. Diameter
LSZH - Low Smoke Zero Halogen (Flame Retardant) 0.034 in (0.86 mm) 0.196 in (4.98 mm)

Overall Cable Diameter (Nominal)

0.196 in (4.98 mm)

Electrical Characteristics
Electricals
Element Nom. Conductor DCR Nom. Inner Shield DCR Nom. Capacitance Cond-to-Cond Nom. Capacitance Cond-to-Other (Conds + Shield) Nom. Characteristic Impedence Nom. Velocity of Prop. Max. Current
Pair(s) 18.2 Ohm/1000ft 18.38 Ohm/1000ft (60.30 Ohm/km) 35 pF/ft (110 pF/m) 62 pF/ft (200 pF/m) 45 Ohm 66% 2.8 Amps per Conductor at 25ºC
Voltage
UL Voltage Rating
300 V (CMG-LS)
Mechanical Characteristics
Temperature
UL Temperature Operating
105°C -30°C to +105°C
Bend Radius
Stationary Min. Installation Min.
2.0 in (51 mm) 2.0 in (51 mm)

Max. Pull Tension

42 lbs (19 kg)

Bulk Cable Weight

24 lbs/1000ft

Standards and Compliance

Environmental Suitability

Indoor/Outdoor, Indoor, Non-Halogenated

Flammability / Reaction to Fire

UL 1685 FT4 Loading, IEEE 1202, IEC 60332-1-2, IEC 60332-3-22

CPR Compliance

CPR Euroclass: Eca

NEC / UL Compliance

Article 800, CMG-LS

CEC / C(UL) Compliance

CMG-ST1

IEEE Compliance

Std. 45 Clause 23

European Directive Compliance

EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)

UK Regulation Compliance

UKCA Mark

APAC Compliance

China RoHS II (GB/T 26572-2011)

Product Notes

Notes

UL444, ABS Certificate 20-2049434-PDA

History

Update and Revision

Revision Number: 0.506 Revision Date: 12-22-2023
