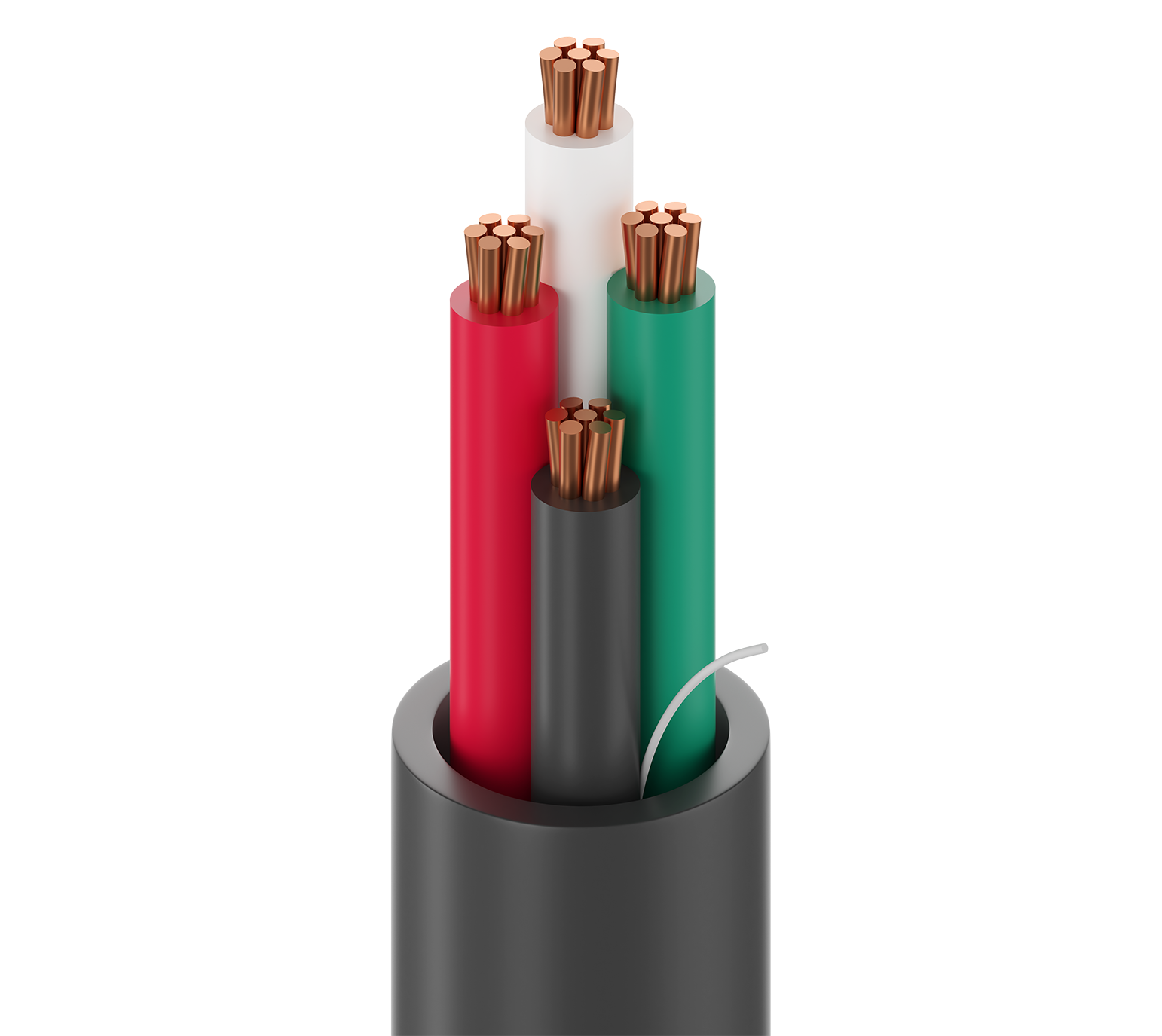

5302UE

Security & Sound, #18-4c, BC, CMR

...
Security & Sound Cable, Riser-CMR, 4-18 AWG stranded bare copper conductors with polyolefin insulation, PVC jacket with ripcord
English
Request Quote
Share
Get Product Alerts

Specifications
Report An Error
Product Overview

Suitable Applications

Security System, Intercom/PA, Audio/Speaker, Power-Limited Controls

Construction Details
Conductor
Element No. of Elements Size Stranding Material
Conductor(s) 4 18 7x26 BC - Bare Copper
Insulation
Material Nom. Thickness Nom. Insulation Diameter Color Code
PP - Polypropylene 0.008 in (0.20 mm) 0.062 in (1.6 mm) Black, Red, White, Green
Outer Jacket
Material Nom. Thickness Nom. Diameter Ripcord
PVC - Polyvinyl Chloride 0.017 in (0.43 mm) 0.184 in (4.67 mm) Yes
Electrical Characteristics
Electricals
Nom. Conductor DCR Nom. Capacitance Cond-to-Cond Max. Current
6.79 Ohm/1000ft 22 pF/ft (72 pF/m) 4 Amps per Conductor at 25ºC (10°C Temperature Rise)
Voltage
UL Voltage Rating
300 V
Mechanical Characteristics
Temperature
UL Temperature Operating
75°C -20°C To +75°C
Bend Radius
Stationary Min. Installation Min.
1.84 in (46.7 mm) 1.84 in (46.7 mm)

Max. Pull Tension

90 lbs (41 kg)

Bulk Cable Weight

35 lbs/1000ft

Standards and Compliance

Environmental Suitability

Indoor, Outdoor

Flammability / Reaction to Fire

UL1666 Riser, FT4, IEC 60332-1-2

CPR Compliance

CPR Euroclass: Eca

NEC / UL Compliance

Article 800, CMR

CEC / C(UL) Compliance

CMG

European Directive Compliance

EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)

UK Regulation Compliance

UKCA Mark

APAC Compliance

China RoHS II (GB/T 26572-2011)

Plenum Number

6302UE

History

Update and Revision

Revision Number: 0.441 Revision Date: 04-03-2023

Show All Specifications
Hide Specifications
Part Numbers
Item # Color Putup Type Length UPC/EAN Footnote
5302UE.00152 Chrome Reel 152 m 8719605008268
5302UE.00305 Chrome Reel 305 m 8719605008275
5302UE.00U305 Chrome Reel 305 m 8719605008282
5302UE 0081000 Gray 612825336853 C
5302UE 008500 Gray 612825336860
5302UE 008C250 Gray
5302UE 008U1000 Gray 612825159612
5302UE 008U500 Gray 612825159629
