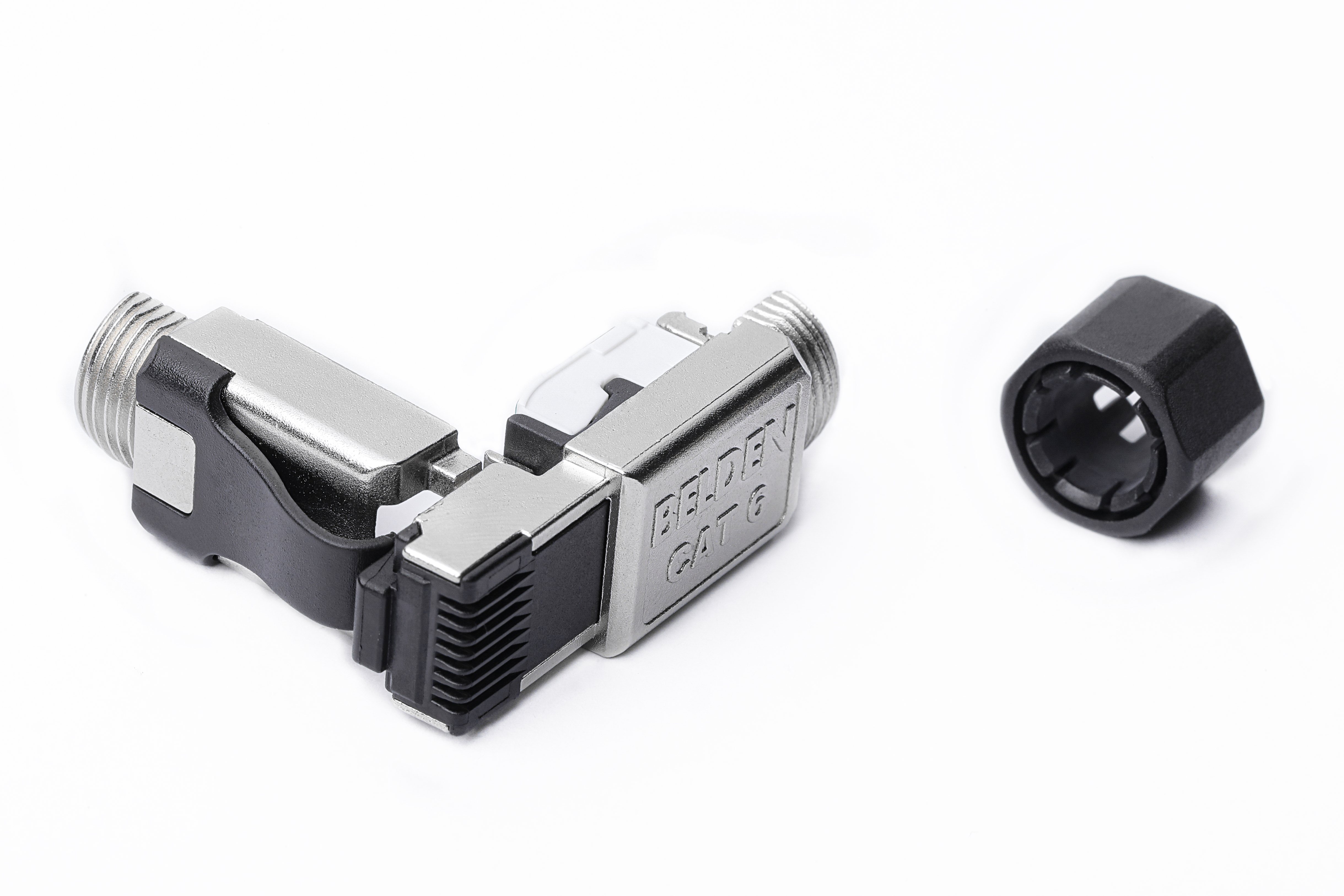

CAT 6 Shielded Field Terminable Plug

...
CAT 6 Shielded Field Terminable Plug Individually Packed in Single Plastic Bag
English
Request Quote
Share
Get Product Alerts

Specifications
Report An Error
Physical Characteristics (Overall)

Table Notes

Conductor Type : Stranded & Solid

Conductor Size

22 ~ 26 AWG

Insulation
Nominal Diameter
1.6 mm
Outer Jacket
Nominal Diameter
6.0 - 8.0 mm

Packaging

Individually packaged in a plastic bag.

Weight

16.5 g
Connectors
Materials
Description Material
Plug Housing Zinc-alloy full shielded
Contact Blade Phosphor bronze alloy plated with 50 micro-inch of Gold
IDC Phosphor Bronze alloy with 100 micro-inch 100% Sn Alloy
Electrical Characteristics

Insulation Resistance

500 mΩ min. 100 D.C

Max Contact Resistance

20 mOhm
Voltage
Description Dielectric Withstand Voltage
Dielectric withstanding Voltage 1000 D.C or A.C. Peak
Contact to Contact 1500V D.C or A.C Peak
Temperature Range

Operating Temperature Range

-10°C To +60°C

Mechanical Characteristics

Termination Type

RJ45

Termination Front Connection

Mated Connection

Termination Front Connection Durability

750 cycles

Termination Rear Connection

Re-termination

Termination Rear Connection Durability

Max. 20 cycles

Protection Degree / IP Rating**

IP20

Standards

ANSI Compliance

ANSI/TIA 568.2-D

Other Standards

CC-Link IE Field, CC-Link IE TSN
Applicable Environmental and Other Programs

EU Directive 2011/65/EU (RoHS 2)

Yes

Product Notes

Included Parts

CAP module and nut module

History

Update and Revision

Revision Number: 0.38 Revision Date: 05-10-2023
