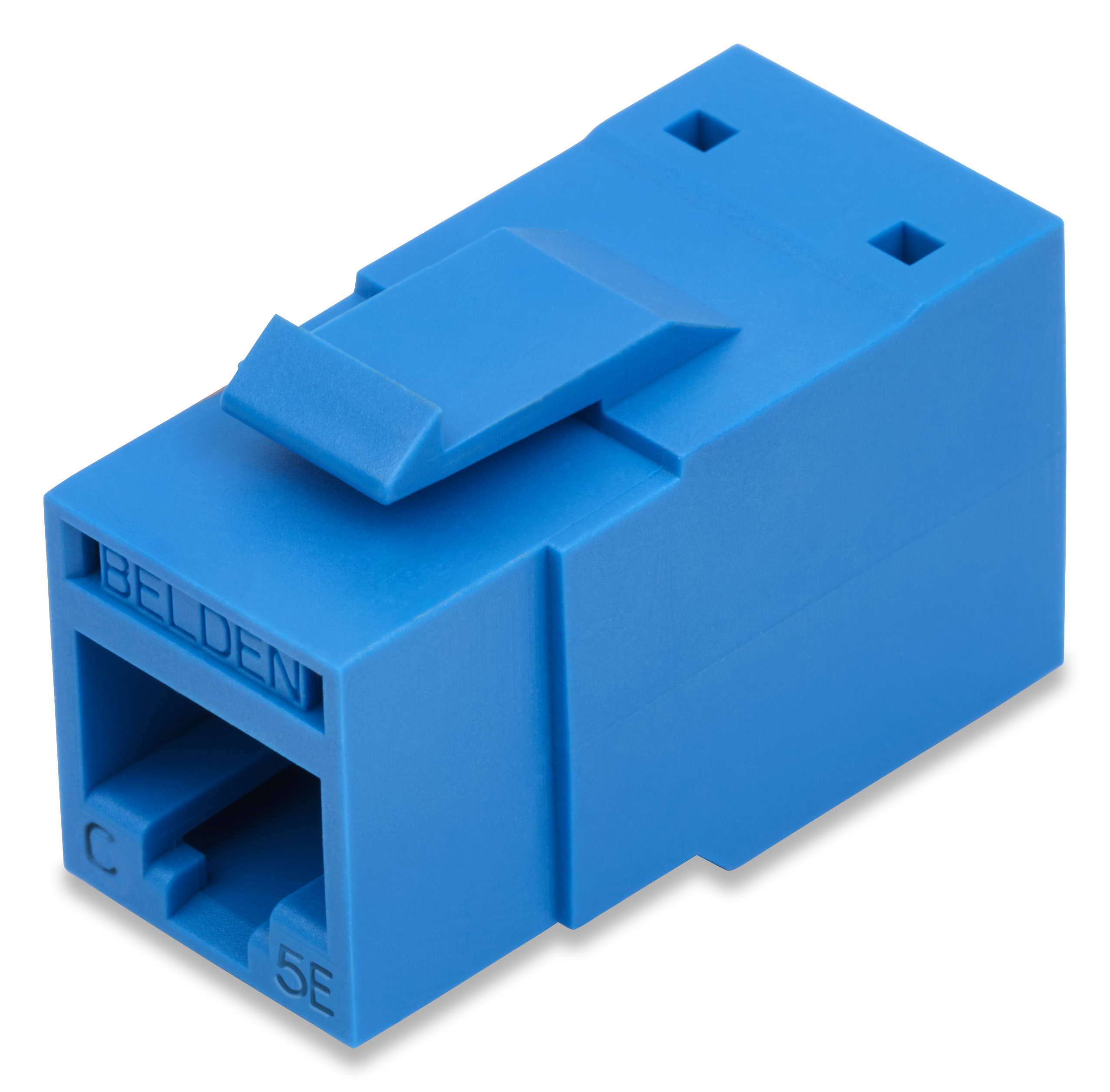

REVConnect CAT5e UTP Modular Jack, T568 A/B
|
Suitable Applications |
1200 System, TIA Category 5E, ISO Class D, 1GBASE-T |
|---|
|
Height |
0.94 in |
|---|---|
|
Width |
0.64 in |
|
Depth |
1.337 in |
|
Wiring Scheme |
T568A/B |
|
Packaging |
Individually packaged in a plastic bag. |
|
Weight |
0.016 lbs |
| Description | Material | Type |
|---|---|---|
| Front Connection | Copper Clad Flexible PCB, 50uin Gold plated contacts over Nickel | RJ45 |
| Rear Connection | Copper alloy, Gold plated contacts over Nickel | REVConnect |
| Connector Body | PBT glass reinforced UL94V-0 |
|
Dielectric Strength |
1,000V RMS @ 60 Hz for 1 minute (Signals to Ground) |
|---|---|
|
Current Rating |
1.300 A |
|
Insulation Resistance |
500 M-Ohm Minimum |
|
Max Contact Resistance |
20 mOhm |
|
Termination Resistance |
2.5 mOhm |
|
Installation Temperature Range |
-10°C To +60°C |
|---|---|
|
Storage Temperature Range |
-40°C To +70°C |
|
Operating Temperature Range |
-10°C To +60°C |
|
Footprint/Type |
REVConnect |
|---|---|
|
Tool Compatibility |
REVConnect Termination Tool (p/n RVUTT01) |
|
Plug /Jack Compatibility |
RJ45, RJ11 |
|
Termination Front Connection |
Mated Connection |
|
Termination Front Connection Durability |
750 cycles |
|
Termination Rear Connection |
Mated Connection |
|
Termination Rear Connection Durability |
20 cycles |
|
Cable/Connector Retention |
15 lbs. |
|
Connector/Hardware Retention |
20 lbs |
|
Plug/Connector Retention |
11.250 lbs |
|
UL Rating |
UL94V-0 |
|---|---|
|
Data Category |
Category 5e |
|
TIA/EIA Compliance |
Category 5e - TIA 568.2-D, ISO/IEC 11801-1 |
|
IEEE Compliance |
Power Over Ethernet (PoE) IEEE 802.3at type 1 and 2 (up to 30W), IEEE802.3bt/D1.7 type 3 and 4 (up to 100W), CISCO UPOE (up to 60W), Power over HDBaseTTM (up to 100W) |
|
Other Standards |
IEC 60603-7 |
|
Environmental Space |
Indoor |
|---|---|
|
EU Directive 2002/95/EC (RoHS) |
Yes |
|
MII Order #39 (China RoHS) |
EUP 50 |
|
UL Flammability |
UL2043 Air Handling Spaces |
|---|---|
|
Safety Listing |
c(UL)us Listed |
|
Related Parts |
Compatible with KeyConnect Faceplates, Adapters, Boxes and Patch Panels |
|---|
|
Included Parts |
1 Cat 5e REVConnect Jack; 1 REVConnect Cable Manager and Cap; 1 Installation Guide |
|---|---|
|
Notes |
Please see Installation Guide PX106434. |
|
Update and Revision |
Revision Number: 0.339 Revision Date: 02-12-2024 |
|---|
| Item # | Color | Packaging |
|---|---|---|
| RV5MJKUAL-B24 | Almond | Bulk Pack (24) |
| RV5MJKUAL-S1 | Almond | Single Pack |
| RV5MJKUBK-B24 | Black | Bulk Pack (24) |
| RV5MJKUBK-S1 | Black | Single Pack |
| RV5MJKUBL-B24 | Blue | Bulk Pack (24) |
| RV5MJKUBL-S1 | Blue | Single Pack |
| RV5MJKUBR-B24 | Brown | Bulk Pack (24) |
| RV5MJKUBR-S1 | Brown | Single Pack |
| RV5MJKUGY-B24 | Gray | Bulk Pack (24) |
| RV5MJKUGY-S1 | Gray | Single Pack |
| RV5MJKUGN-B24 | Green | Bulk Pack (24) |
| RV5MJKUGN-S1 | Green | Single Pack |
| RV5MJKUIV-B24 | Ivory | Bulk Pack (24) |
| RV5MJKUIV-S1 | Ivory | Single Pack |
| RV5MJKUOR-B24 | Orange | Bulk Pack (24) |
| RV5MJKUOR-S1 | Orange | Single Pack |
| RV5MJKUPR-B24 | Purple | Bulk Pack (24) |
| RV5MJKUPR-S1 | Purple | Single Pack |
| RV5MJKURD-B24 | Red | Bulk Pack (24) |
| RV5MJKURD-S1 | Red | Single Pack |
| RVAMJKUTB-B24 | TIA Blue | Bulk Pack (24) |
| RVAMJKUTB-S1 | TIA Blue | Single Pack |
| RVUDCTB-B24 | TIA Blue | Individually packaged in a plastic bag. |
| RVUICTB-B24 | TIA Blue | Bulk Pack (24) |
| RVAMJKUTN-B24 | TIA Brown | Bulk Pack (24) |
| RVAMJKUTN-S1 | TIA Brown | Single Pack |
| RVUDCTN-B24 | TIA Brown | Individually packaged in a plastic bag. |
| RVUICTN-B24 | TIA Brown | Bulk Pack (24) |
| RVAMJKUTG-B24 | TIA Green | Bulk Pack (24) |
| RVAMJKUTG-S1 | TIA Green | Single Pack |
| RVUDCTG-B24 | TIA Green | Individually packaged in a plastic bag. |
| RVUICTG-B24 | TIA Green | Bulk Pack (24) |
| RV5MJKUTO-B24 | TIA Orange | Bulk Pack (24) |
| RV5MJKUTO-S1 | TIA Orange | Single Pack |
| RVAMJKUTO-B24 | TIA Orange | Bulk Pack (24) |
| RVAMJKUTO-S1 | TIA Orange | Single Pack |
| RVUDCTO-B24 | TIA Orange | Individually packaged in a plastic bag. |
| RVUICTO-B24 | TIA Orange | Bulk Pack (24) |
| RV5MJKUTP-B24 | TIA Purple | Bulk Pack (24) |
| RV5MJKUTP-S1 | TIA Purple | Single Pack |
| RVAMJKUTP-B24 | TIA Purple | Bulk Pack (24) |
| RVAMJKUTP-S1 | TIA Purple | Single Pack |
| RVUDCTP-B24 | TIA Purple | Individually packaged in a plastic bag. |
| RVUICTP-B24 | TIA Purple | Bulk Pack (24) |
| RV5MJKUTR-B24 | TIA Red | Bulk Pack (24) |
| RVAMJKUTR-B24 | TIA Red | Bulk Pack (24) |
| RVAMJKUTR-S1 | TIA Red | Single Pack |
| RVUDCTR-B24 | TIA Red | Individually packaged in a plastic bag. |
| RVUICTR-B24 | TIA Red | Bulk Pack (24) |
| RV5MJKUTY-B24 | TIA Yellow | Bulk Pack (24) |
| RV5MJKUTY-S1 | TIA Yellow | Single Pack |
| RVAMJKUTY-B24 | TIA Yellow | Bulk Pack (24) |
| RVAMJKUTY-S1 | TIA Yellow | Single Pack |
| RVUDCTY-B24 | TIA Yellow | Individually packaged in a plastic bag. |
| RVUICTY-B24 | TIA Yellow | Bulk Pack (24) |
| RV5MJKUEW-B24 | White | Bulk Pack (24) |
| RV5MJKUEW-S1 | White | Single Pack |
| RV5MJKUYL-B24 | Yellow | Bulk Pack (24) |
| RV5MJKUYL-S1 | Yellow | Single Pack |
